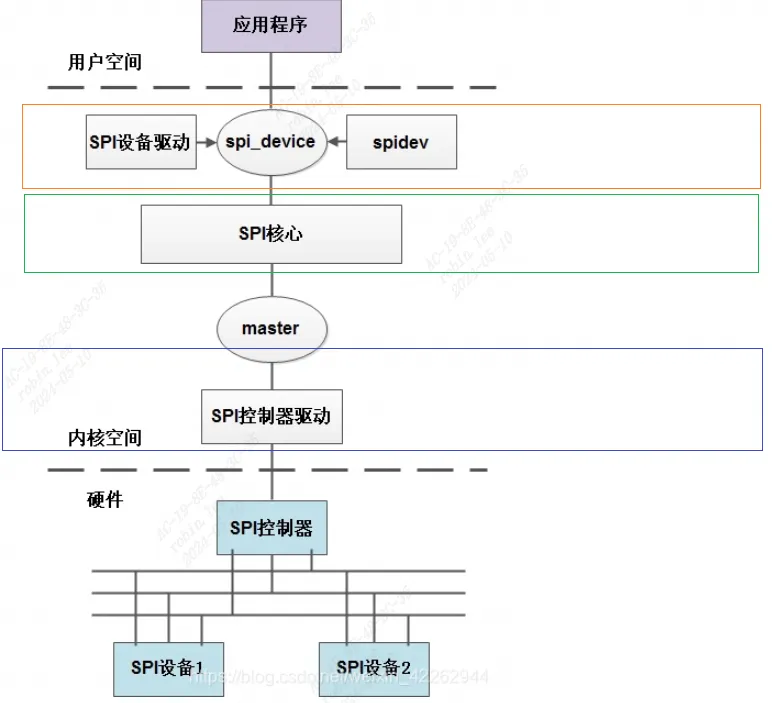

设备驱动层: spi框架使用者
核心层：spi框架搭建者
控制器驱动层： spi框架适配者

# SPDX-License-Identifier: GPL-2.0
#
# Makefile for kernel SPI drivers.
#
ccflags-$(CONFIG_SPI_DEBUG) := -DDEBUG
# small core, mostly translating board-specific
# config declarations into driver model code
obj-$(CONFIG_SPI_MASTER)		+= spi.o
obj-$(CONFIG_SPI_MEM)			+= spi-mem.o
obj-$(CONFIG_SPI_MUX)			+= spi-mux.o
obj-$(CONFIG_SPI_SPIDEV)		+= spidev.o
obj-$(CONFIG_SPI_LOOPBACK_TEST)		+= spi-loopback-test.o
# SPI master controller drivers (bus)
obj-$(CONFIG_SPI_ALTERA)		+= spi-altera.o
obj-$(CONFIG_SPI_AR934X)		+= spi-ar934x.o
obj-$(CONFIG_SPI_ARMADA_3700)		+= spi-armada-3700.o
obj-$(CONFIG_SPI_ATMEL)			+= spi-atmel.o
obj-$(CONFIG_SPI_ATMEL_QUADSPI)		+= atmel-quadspi.o
obj-$(CONFIG_SPI_AT91_USART)		+= spi-at91-usart.o
obj-$(CONFIG_SPI_ATH79)			+= spi-ath79.o
obj-$(CONFIG_SPI_AU1550)		+= spi-au1550.o
obj-$(CONFIG_SPI_AXI_SPI_ENGINE)	+= spi-axi-spi-engine.o
obj-$(CONFIG_SPI_BCM2835)		+= spi-bcm2835.o

drivers/spi/spi.c spi-mem.c spi-mux.c
include/linux/spi/spi.h
spi.c：
    一方面对SPI子系统进行初始化工作，注册spi bus，注册spi_master class，
    同时提供spi设备驱动对spi总线进行操作的API。
    另一方面SPI子系统对spi控制器层，提供注册控制器的api和回调操作函数。
spi.h包含了spi核心层的一些重要数据结构，struct spi_master;
	struct spi_transfer; struct spi_message，以及一些实现比较简单的函数等。

spi-gpio.c：SPI GPIO框架：SPI子系统提供了一个名为spi-gpio的框架，
        可使用GPIO引脚模拟SPI总线，gpio模拟spi代码在drivers/spi/spi-gpio.c中。
        这个框架允许将GPIO引脚配置为SPI总线的时钟、片选、输入和输出信号，
        并提供了对应的接口函数供驱动程序使用。
spi-bitbang：spi-bitbang是Linux内核中提供的一个通用框架，用于在没有硬件SPI控制器
        或需要灵活控制SPI时序和配置的系统中模拟SPI总线的通信。代码在spi-bitbang.c中

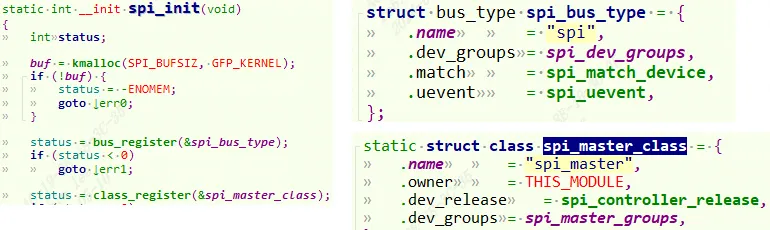

static int __init spi_init(void) {
	int	status;
	buf = kmalloc(SPI_BUFSIZ, GFP_KERNEL);
	if (!buf) {
		status = -ENOMEM;
		goto err0;
	}
	status = bus_register(&spi_bus_type);
	if (status < 0)
		goto err1;
	status = class_register(&spi_master_class);
	if (status < 0)
		goto err2;
	if (IS_ENABLED(CONFIG_SPI_SLAVE)) {
		status = class_register(&spi_slave_class);
		if (status < 0)
			goto err3;
	}

	if (IS_ENABLED(CONFIG_OF_DYNAMIC))
		WARN_ON(of_reconfig_notifier_register(&spi_of_notifier));
	if (IS_ENABLED(CONFIG_ACPI))
		WARN_ON(acpi_reconfig_notifier_register(&spi_acpi_notifier));

	return 0;
err3:
	class_unregister(&spi_master_class);
err2:
	bus_unregister(&spi_bus_type);
err1:
	kfree(buf);
	buf = NULL;
err0:
	return status;
}

static int spi_match_device(struct device *dev, struct device_driver *drv) {
	const struct spi_device	*spi = to_spi_device(dev);
	const struct spi_driver	*sdrv = to_spi_driver(drv);

	/* Check override first, and if set, only use the named driver */
	if (spi->driver_override)
		return strcmp(spi->driver_override, drv->name) == 0;

	/* Attempt an OF style match */
	if (of_driver_match_device(dev, drv))
		return 1;

	/* Then try ACPI */
	if (acpi_driver_match_device(dev, drv))
		return 1;

	if (sdrv->id_table)
		return !!spi_match_id(sdrv->id_table, spi);
	return strcmp(spi->modalias, drv->name) == 0;
}

int spi_register_master(struct spi_master *master) {
	...
	status = of_spi_register_master(master);
	if (status)
		return status;
	...
	dev_set_name(&master->dev, "spi%u", master->bus_num);
	status = device_add(&master->dev);
	if (status < 0)
		goto done;
	dev_dbg(dev, "registered master %s%s\n", dev_name(&master->dev),
			dynamic ? " (dynamic)" : "");

	if (master->transfer)
		dev_info(dev, "master is unqueued, this is deprecated\n");
	else {

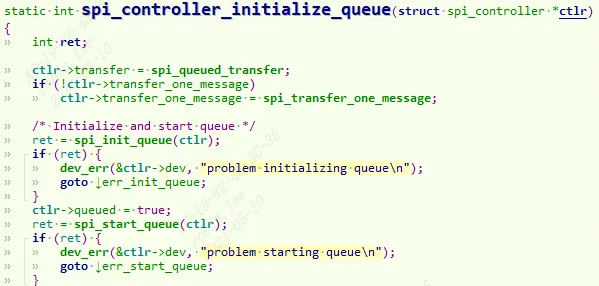

		status = spi_master_initialize_queue(master);
		if (status) {
			device_del(&master->dev);
			goto done;
		}
	}
	...
	mutex_lock(&board_lock);
	list_add_tail(&master->list, &spi_master_list);
	list_for_each_entry(bi, &board_list, list)
		spi_match_master_to_boardinfo(master, &bi->board_info);
	mutex_unlock(&board_lock);
	...
	of_register_spi_devices(master);
	...
done:
	return status;
}

static int spi_init_queue(struct spi_master *master)
{
	......
	kthread_init_worker(&master->kworker);
	master->kworker_task = kthread_run(kthread_worker_fn,
            &master->kworker, "%s", dev_name(&master->dev));
	......
	kthread_init_work(&master->pump_messages, spi_pump_messages);
	......
	return 0;
}
static int spi_start_queue(struct spi_master *master)
{
	......
	master->running = true;
	master->cur_msg = NULL;
	......
	kthread_queue_work(&master->kworker, &master->pump_messages);
	......
	return 0;
}
/* spi_init_queue函数先初始化kthread_worker，为kthread_worker创建一个内核线程来处理work，
		随后初始化kthread_work,设置work执行函数，work执行函数为spi_pump_messages
spi_start_queue就相对简单了，只是唤醒该工作线程而已；自此，队列化的相关工作已经完成，
		系统等待message请求被发起，然后在工作线程中处理message的传送工作。
*/

static inline void spi_message_init_no_memset(struct spi_message *m)
{
	INIT_LIST_HEAD(&m->transfers);
	INIT_LIST_HEAD(&m->resources);
}
static inline void spi_message_init(struct spi_message *m)
{
	memset(m, 0, sizeof *m);
	spi_message_init_no_memset(m);
}

static inline void
spi_message_add_tail(struct spi_transfer *t, struct spi_message *m) {
	list_add_tail(&t->transfer_list, &m->transfers);
}

spi_async->
		__spi_async->
				master->transfer

spi_queued_transfer(struct spi_device *spi, struct spi_message *msg) {
		__spi_queued_transfer(spi, msg, true);
}
static int __spi_queued_transfer(struct spi_device *spi,
				 struct spi_message *msg,
				 bool need_pump) {
	struct spi_master *master = spi->master;
	unsigned long flags;

	spin_lock_irqsave(&master->queue_lock, flags);
	...
	list_add_tail(&msg->queue, &master->queue);
	if (!master->busy && need_pump)
		kthread_queue_work(&master->kworker, &master->pump_messages);
	spin_unlock_irqrestore(&master->queue_lock, flags);
	return 0;
}

int spi_bitbang_start(struct spi_bitbang *bitbang)
{
    struct spi_master *master = bitbang->master;
    int ret;

    if (!master | !bitbang->chipselect)
        return -EINVAL;

    mutex_init(&bitbang->lock);

    if (!master->mode_bits)
        master->mode_bits = SPI_CPOL | SPI_CPHA | bitbang->flags;

    if (master->transfer | master->transfer_one_message)
        return -EINVAL;

    master->prepare_transfer_hardware = spi_bitbang_prepare_hardware;
    master->unprepare_transfer_hardware = spi_bitbang_unprepare_hardware;
    master->transfer_one = spi_bitbang_transfer_one;
    master->set_cs = spi_bitbang_set_cs;

    if (!bitbang->txrx_bufs) {
        bitbang->use_dma = 0;
        bitbang->txrx_bufs = spi_bitbang_bufs;
        if (!master->setup) {
            if (!bitbang->setup_transfer)
                bitbang->setup_transfer =
                     spi_bitbang_setup_transfer;
            master->setup = spi_bitbang_setup;
            master->cleanup = spi_bitbang_cleanup;
        }
    }

    /* driver may get busy before register() returns, especially
     * if someone registered boardinfo for devices
     */
    ret = spi_register_master(spi_master_get(master));
    if (ret)
        spi_master_put(master);

    return ret;
}

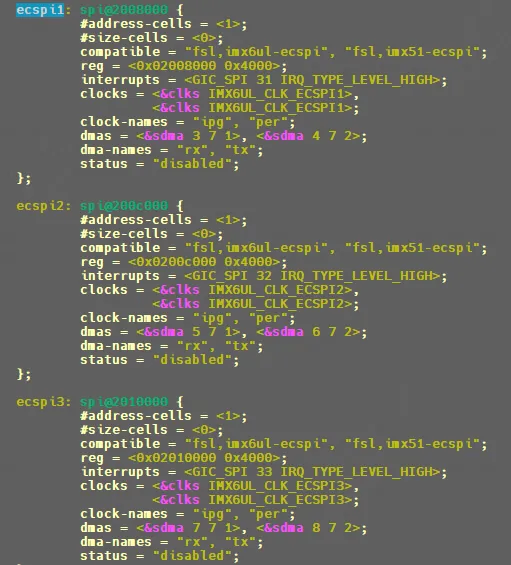

ecspi3: spi@2010000 {
        #address-cells = <1>;
        #size-cells = <0>;
        compatible = "fsl,imx6ul-ecspi", "fsl,imx51-ecspi";
        reg = <0x02010000 0x4000>;
        interrupts = <GIC_SPI 33 IRQ_TYPE_LEVEL_HIGH>;
        clocks = <&clks IMX6UL_CLK_ECSPI3>,
                 <&clks IMX6UL_CLK_ECSPI3>;
        clock-names = "ipg", "per";
        dmas = <&sdma 7 7 1>, <&sdma 8 7 2>;
        dma-names = "rx", "tx";
        status = "disabled";
};

spi_imx_buf_tx_u8
spi_imx_buf_tx_u16
spi_imx_buf_tx_u32
spi_imx_buf_rx_u8
spi_imx_buf_rx_u16
spi_imx_buf_rx_u32

#define MXC_SPI_BUF_RX(type)						\
static void spi_imx_buf_rx_##type(struct spi_imx_data *spi_imx)		\
{	    //将要接收的数据值读到 ECSPI 的 MXC_CSPIRXDATA 寄存器里面去	\
	unsigned int val = readl(spi_imx->base + MXC_CSPIRXDATA);	\
									\
	if (spi_imx->rx_buf) {						\
		*(type *)spi_imx->rx_buf = val;				\
		spi_imx->rx_buf += sizeof(type);			\
	}								\
}
#define MXC_SPI_BUF_TX(type)						\
static void spi_imx_buf_tx_##type(struct spi_imx_data *spi_imx)		\
{									\
	type val = 0;							\
									\
	if (spi_imx->tx_buf) {						\
		val = *(type *)spi_imx->tx_buf;				\
		spi_imx->tx_buf += sizeof(type);			\
	}								\
									\
	spi_imx->count -= sizeof(type);					\
//将要发送的数据值写入到 ECSPI 的 TXDATA 寄存器里面去		\
	writel(val, spi_imx->base + MXC_CSPITXDATA);	\
}

MXC_SPI_BUF_RX(u8)
MXC_SPI_BUF_TX(u8)
MXC_SPI_BUF_RX(u16)
MXC_SPI_BUF_TX(u16)
MXC_SPI_BUF_RX(u32)
MXC_SPI_BUF_TX(u32)

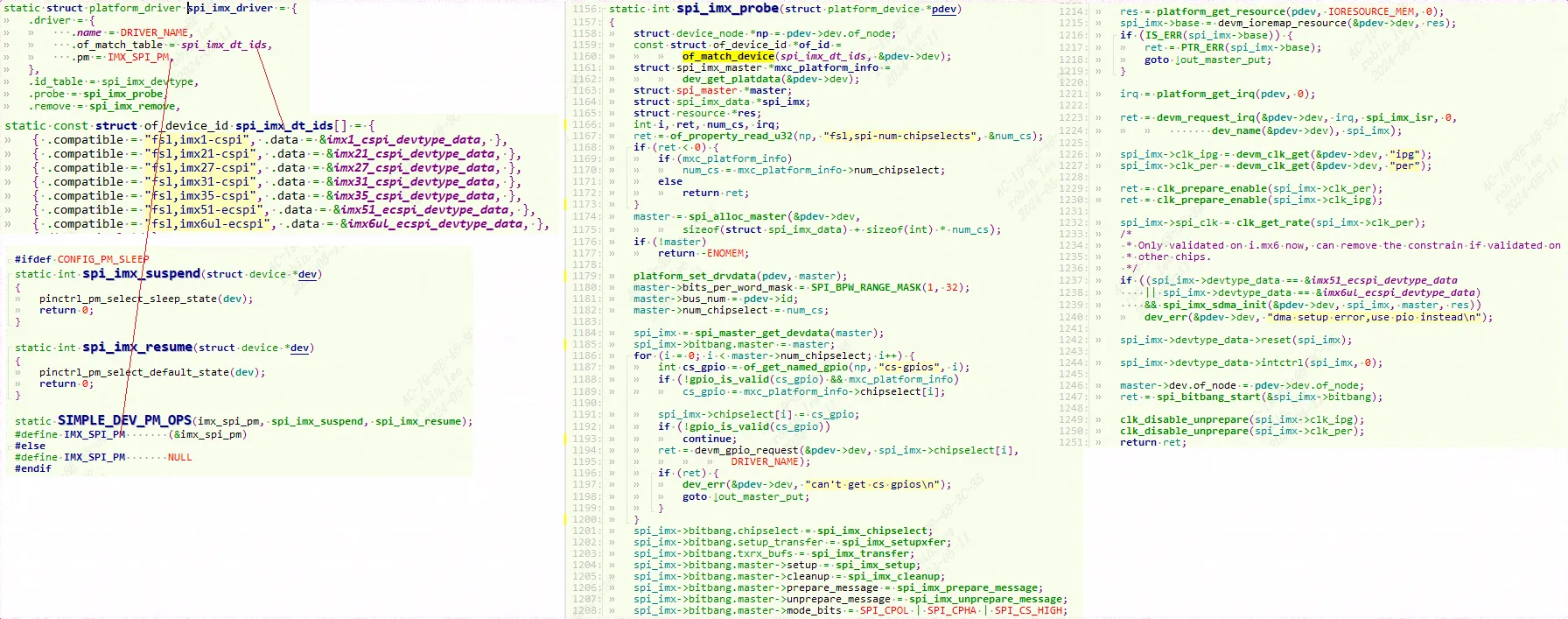

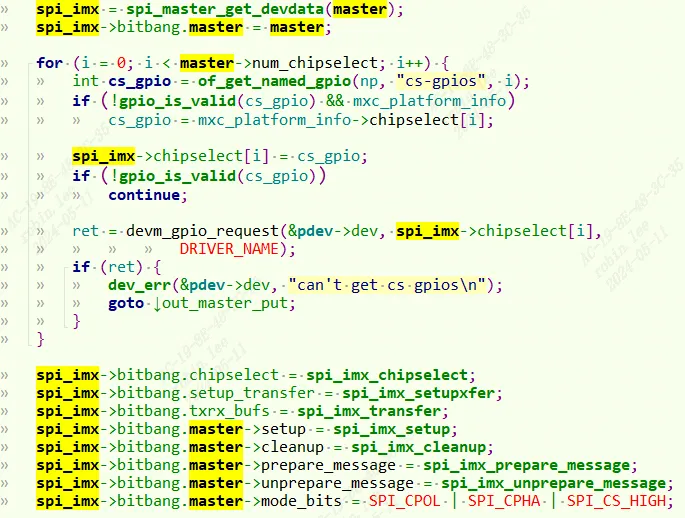

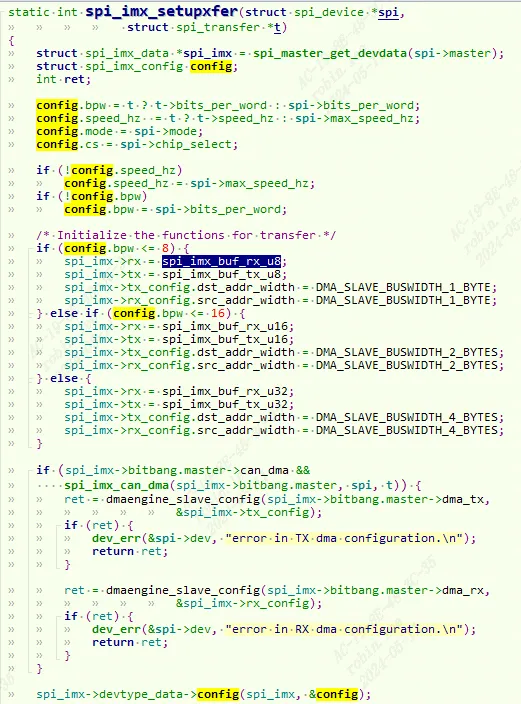

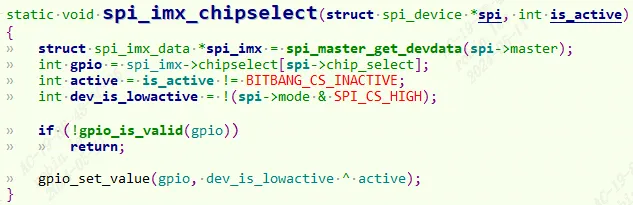

spi_imx->bitbang.setup_transfer = spi_imx_setupxfer

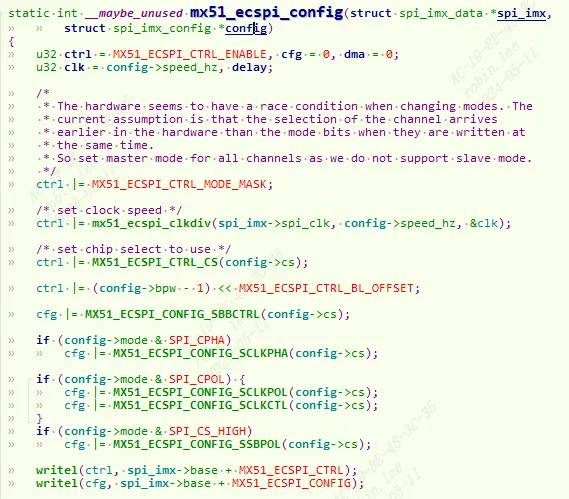

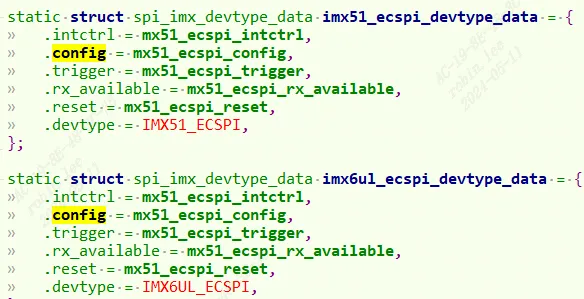

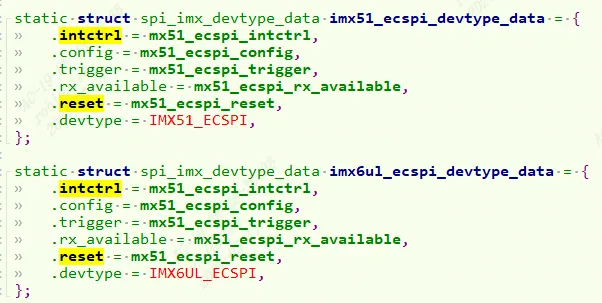

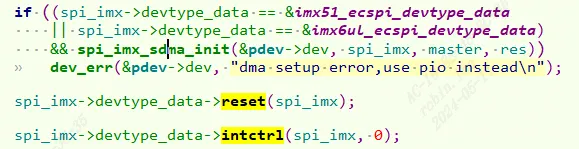

	spi_imx->devtype_data->config = mx51_ecspi_config

spi_imx_transfer
    -> spi_imx_pio_transfer
        -> spi_imx_push
        	-> spi_imx->tx

spi_bitbang_start中
    ->master->transfer_one = spi_bitbang_transfer_one;
当spi_bitbang_transfer_on时
    bitbang->txrx_bufs(spi,t) = spi_imx_transfer
    也就是spi_imx->tx就可以spi_imx_buf_tx_u8

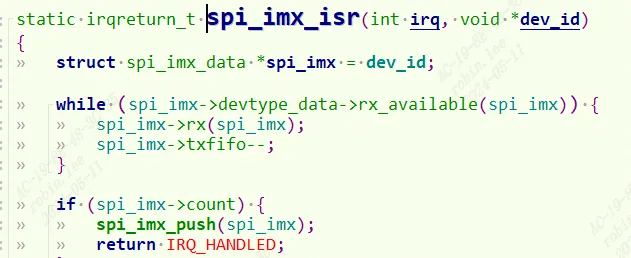

static int __maybe_unused mx51_ecspi_rx_available(struct spi_imx_data *spi_imx)
{
	return readl(spi_imx->base + MX51_ECSPI_STAT) & MX51_ECSPI_STAT_RR;
}
#define MXC_SPI_BUF_RX(type)						\
static void spi_imx_buf_rx_##type(struct spi_imx_data *spi_imx)		\
{									\
	unsigned int val = readl(spi_imx->base + MXC_CSPIRXDATA);	\
									\
	if (spi_imx->rx_buf) {						\
		*(type *)spi_imx->rx_buf = val;				\
		spi_imx->rx_buf += sizeof(type);			\
	}								\
}

static inline void spi_message_init_with_transfers(struct spi_message *m,
             struct spi_transfer *xfers, unsigned int num_xfers) {
	unsigned int i;
	spi_message_init(m);
	for (i = 0; i < num_xfers; ++i)
		spi_message_add_tail(&xfers[i], m);
}
static inline int spi_sync_transfer(struct spi_device *spi, struct spi_transfer *xfers,
             unsigned int num_xfers) {
	struct spi_message msg;
	spi_message_init_with_transfers(&msg, xfers, num_xfers);
	return spi_sync(spi, &msg);
}

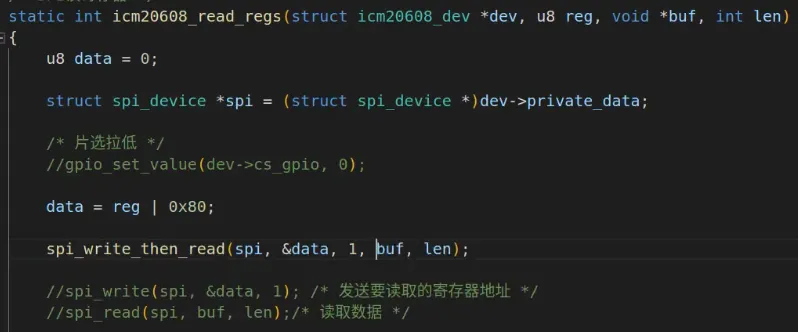

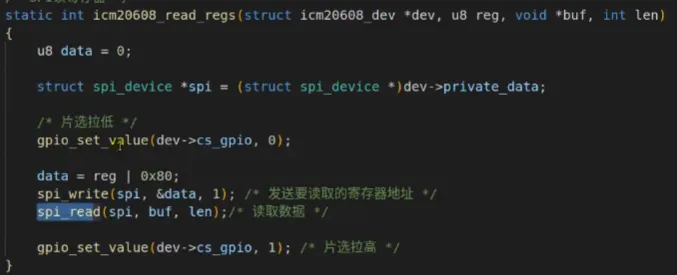

static inline int spi_read(struct spi_device *spi, void *buf, size_t len) {
	struct spi_transfer	t = {
			.rx_buf		= buf,
			.len		= len,
		};
	return spi_sync_transfer(spi, &t, 1);
}

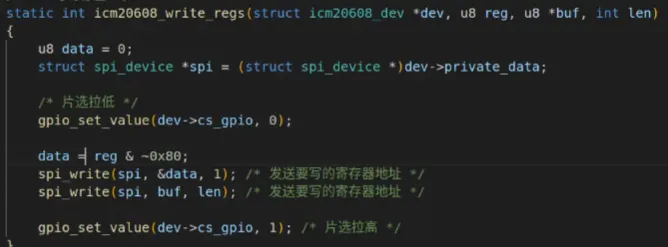

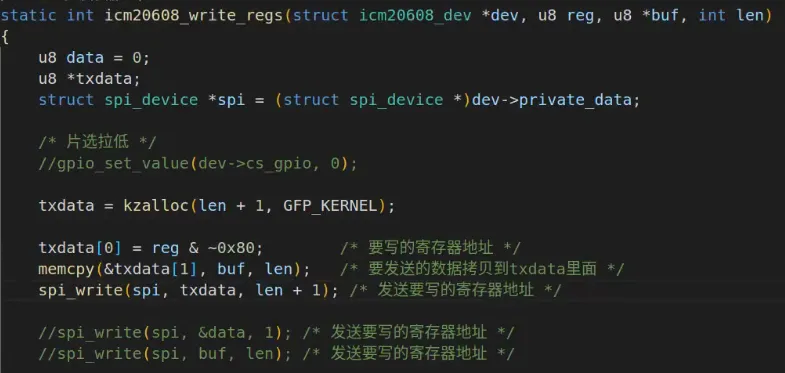

static inline int spi_write(struct spi_device *spi, const void *buf, size_t len)
{
	struct spi_transfer	t = {
			.tx_buf		= buf,
			.len		= len,
		};

	return spi_sync_transfer(spi, &t, 1);
}

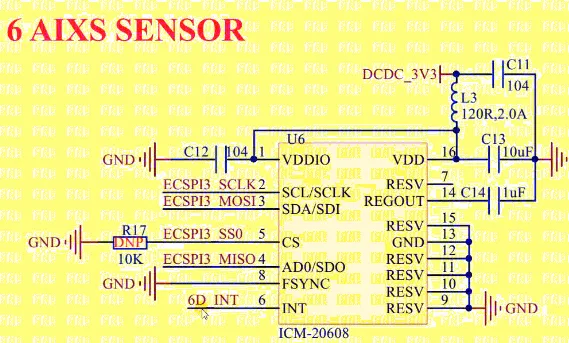

pinctrl_ecspi3: icm20608 {
	fsl,pins = <
		MX6UL_PAD_UART2_TX_DATA__GPIO1_IO20 0x10b0 /* CS */
		MX6UL_PAD_UART2_RX_DATA__ECSPI3_SCLK 0x10b1 /* SCLK */
		MX6UL_PAD_UART2_RTS_B__ECSPI3_MISO 0x10b1 /* MISO */
		MX6UL_PAD_UART2_CTS_B__ECSPI3_MOSI 0x10b1 /* MOSI */
	>;
};

&ecspi3 {
	fsl,spi-num-chipselects = <1>;
	cs-gpios = <&gpio1 20 GPIO_ACTIVE_LOW>;
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_ecspi3>;
	status = "okay";

	spidev: icm20608@0 {
		compatible = "alientek,icm20608";
		spi-max-frequency = <8000000>;
		reg = <0>;
	};
};

SPI slave nodes must be children of the SPI master node and can
contain the following properties.
- reg             - (required) chip select address of device.
- compatible      - (required) name of SPI device following generic names
    		recommended practice
- spi-max-frequency - (required) Maximum SPI clocking speed of device in Hz
- spi-cpol        - (optional) Empty property indicating device requires
    		inverse clock polarity (CPOL) mode
- spi-cpha        - (optional) Empty property indicating device requires
    		shifted clock phase (CPHA) mode
- spi-cs-high     - (optional) Empty property indicating device requires
    		chip select active high
- spi-3wire       - (optional) Empty property indicating device requires
    		    3-wire mode.
- spi-lsb-first   - (optional) Empty property indicating device requires
		LSB first mode.
- spi-tx-bus-width - (optional) The bus width(number of data wires) that
                      used for MOSI. Defaults to 1 if not present.
- spi-rx-bus-width - (optional) The bus width(number of data wires) that
                      used for MISO. Defaults to 1 if not present.

#ifndef ICM20608_H
#define ICM20608_H
/***************************************************************
文件名		: icm20608reg.h
***************************************************************/
#define ICM20608G_ID			0XAF	/* ID值 */
#define ICM20608D_ID			0XAE	/* ID值 */
/* ICM20608寄存器
 *复位后所有寄存器地址都为0，除了
 *Register 107(0X6B) Power Management 1 	= 0x40
 *Register 117(0X75) WHO_AM_I 				= 0xAF或0xAE
 */
/* 陀螺仪和加速度自测(出产时设置，用于与用户的自检输出值比较） */
#define	ICM20_SELF_TEST_X_GYRO		0x00
#define	ICM20_SELF_TEST_Y_GYRO		0x01
#define	ICM20_SELF_TEST_Z_GYRO		0x02
#define	ICM20_SELF_TEST_X_ACCEL		0x0D
#define	ICM20_SELF_TEST_Y_ACCEL		0x0E
#define	ICM20_SELF_TEST_Z_ACCEL		0x0F
/* 陀螺仪静态偏移 */
#define	ICM20_XG_OFFS_USRH			0x13
#define	ICM20_XG_OFFS_USRL			0x14
#define	ICM20_YG_OFFS_USRH			0x15
#define	ICM20_YG_OFFS_USRL			0x16
#define	ICM20_ZG_OFFS_USRH			0x17
#define	ICM20_ZG_OFFS_USRL			0x18
#define	ICM20_SMPLRT_DIV			0x19
#define	ICM20_CONFIG				0x1A
#define	ICM20_GYRO_CONFIG			0x1B
#define	ICM20_ACCEL_CONFIG			0x1C
#define	ICM20_ACCEL_CONFIG2			0x1D
#define	ICM20_LP_MODE_CFG			0x1E
#define	ICM20_ACCEL_WOM_THR			0x1F
#define	ICM20_FIFO_EN				0x23
#define	ICM20_FSYNC_INT				0x36
#define	ICM20_INT_PIN_CFG			0x37
#define	ICM20_INT_ENABLE			0x38
#define	ICM20_INT_STATUS			0x3A
/* 加速度输出 */
#define	ICM20_ACCEL_XOUT_H			0x3B
#define	ICM20_ACCEL_XOUT_L			0x3C
#define	ICM20_ACCEL_YOUT_H			0x3D
#define	ICM20_ACCEL_YOUT_L			0x3E
#define	ICM20_ACCEL_ZOUT_H			0x3F
#define	ICM20_ACCEL_ZOUT_L			0x40
/* 温度输出 */
#define	ICM20_TEMP_OUT_H			0x41
#define	ICM20_TEMP_OUT_L			0x42
/* 陀螺仪输出 */
#define	ICM20_GYRO_XOUT_H			0x43
#define	ICM20_GYRO_XOUT_L			0x44
#define	ICM20_GYRO_YOUT_H			0x45
#define	ICM20_GYRO_YOUT_L			0x46
#define	ICM20_GYRO_ZOUT_H			0x47
#define	ICM20_GYRO_ZOUT_L			0x48
#define	ICM20_SIGNAL_PATH_RESET		0x68
#define	ICM20_ACCEL_INTEL_CTRL 		0x69
#define	ICM20_USER_CTRL				0x6A
#define	ICM20_PWR_MGMT_1			0x6B
#define	ICM20_PWR_MGMT_2			0x6C
#define	ICM20_FIFO_COUNTH			0x72
#define	ICM20_FIFO_COUNTL			0x73
#define	ICM20_FIFO_R_W				0x74
#define	ICM20_WHO_AM_I 				0x75
/* 加速度静态偏移 */
#define	ICM20_XA_OFFSET_H			0x77
#define	ICM20_XA_OFFSET_L			0x78
#define	ICM20_YA_OFFSET_H			0x7A
#define	ICM20_YA_OFFSET_L			0x7B
#define	ICM20_ZA_OFFSET_H			0x7D
#define	ICM20_ZA_OFFSET_L 			0x7E
#endif

#include <linux/types.h>
#include <linux/kernel.h>
#include <linux/delay.h>
#include <linux/ide.h>
#include <linux/init.h>
#include <linux/module.h>
#include <linux/errno.h>
#include <linux/gpio.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/of_gpio.h>
#include <linux/semaphore.h>
#include <linux/timer.h>
#include <linux/i2c.h>
#include <linux/spi/spi.h>
#include <linux/of.h>
#include <linux/of_address.h>
#include <linux/of_gpio.h>
#include <linux/platform_device.h>
#include <asm/mach/map.h>
#include <asm/uaccess.h>
#include <asm/io.h>
#include "icm20608reg.h"
#define ICM20608_CNT	1
#define ICM20608_NAME	"icm20608"
struct icm20608_dev {
	dev_t devid;				/* 设备号 	 */
	struct cdev cdev;			/* cdev 	*/
	struct class *class;		/* 类 		*/
	struct device *device;		/* 设备 	 */
	struct device_node	*nd; 	/* 设备节点 */
	int major;					/* 主设备号 */
	void *private_data;			/* 私有数据 		*/
	signed int gyro_x_adc;		/* 陀螺仪X轴原始值 	 */
	signed int gyro_y_adc;		/* 陀螺仪Y轴原始值		*/
	signed int gyro_z_adc;		/* 陀螺仪Z轴原始值 		*/
	signed int accel_x_adc;		/* 加速度计X轴原始值 	*/
	signed int accel_y_adc;		/* 加速度计Y轴原始值	*/
	signed int accel_z_adc;		/* 加速度计Z轴原始值 	*/
	signed int temp_adc;		/* 温度原始值 			*/
};
static struct icm20608_dev icm20608dev;

/*
 * @description	: 从icm20608读取多个寄存器数据
 * @param - dev:  icm20608设备
 * @param - reg:  要读取的寄存器首地址
 * @param - val:  读取到的数据
 * @param - len:  要读取的数据长度
 * @return 		: 操作结果
 */

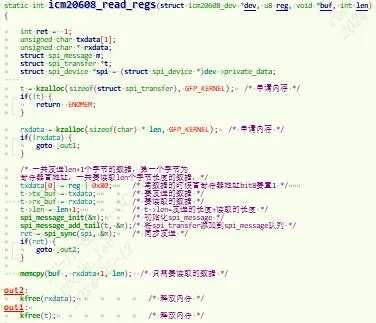

static int icm20608_read_regs(struct icm20608_dev *dev, u8 reg, void *buf, int len)
{
	int ret = -1;
	unsigned char txdata[1];
	unsigned char * rxdata;
	struct spi_message m;
	struct spi_transfer *t;
	struct spi_device *spi = (struct spi_device *)dev->private_data;

	t = kzalloc(sizeof(struct spi_transfer), GFP_KERNEL);	/* 申请内存 */
	if(!t) {
		return -ENOMEM;
	}

	rxdata = kzalloc(sizeof(char) * len, GFP_KERNEL);	/* 申请内存 */
	if(!rxdata) {
		goto out1;
	}
    #if 1
	/* 一共发送len+1个字节的数据，第一个字节为
	寄存器首地址，一共要读取len个字节长度的数据，*/
	txdata[0] = reg | 0x80;		/* 写数据的时候首寄存器地址bit8要置1 */
	t->tx_buf = txdata;			/* 要发送的数据 */
    t->rx_buf = rxdata;			/* 要读取的数据 */
	t->len = len+1;				/* t->len=发送的长度+读取的长度 */
	spi_message_init(&m);		/* 初始化spi_message */
	spi_message_add_tail(t, &m);/* 将spi_transfer添加到spi_message队列 */

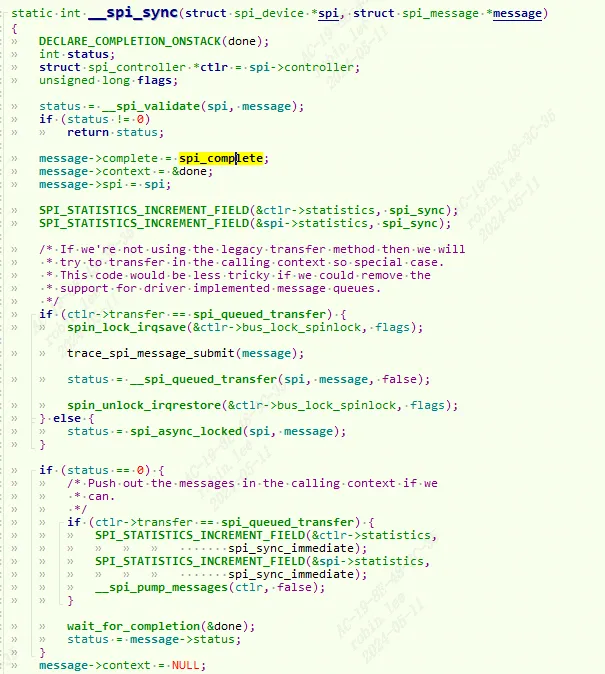

	ret = spi_sync(spi, &m);	/* 同步发送 */
	#else
    //第一步，发送寄存器地址
    txdata[0] = reg | 0x80;
    t->tx_buf = txdata;
    t->len = 1;
    spi_message_init(&m);
	spi_message_add_tail(t, &m);
	ret = spi_sync(spi, &m);

    //第二步，读取数据
    txdata[0] = 0xff;
    t->rx_buf = buf;
    t->len = len;
    spi_message_init(&m);
	spi_message_add_tail(t, &m);
	ret = spi_sync(spi, &m);
    #endif
    if(ret) {
		goto out2;
	}
    memcpy(buf , rxdata+1, len);  /* 只需要读取的数据 */
out2:
	kfree(rxdata);					/* 释放内存 */
out1:
	kfree(t);						/* 释放内存 */
	return ret;
}
/*
 * @description	: 向icm20608多个寄存器写入数据
 * @param - dev:  icm20608设备
 * @param - reg:  要写入的寄存器首地址
 * @param - val:  要写入的数据缓冲区
 * @param - len:  要写入的数据长度
 * @return 	  :   操作结果
 */

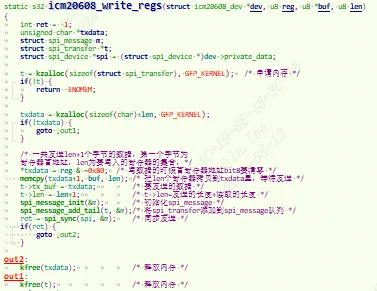

static s32 icm20608_write_regs(struct icm20608_dev *dev, u8 reg, u8 *buf, u8 len)
{
	int ret = -1;
	unsigned char *txdata;
	struct spi_message m;
	struct spi_transfer *t;
	struct spi_device *spi = (struct spi_device *)dev->private_data;

	t = kzalloc(sizeof(struct spi_transfer), GFP_KERNEL);	/* 申请内存 */
	if(!t) {
		return -ENOMEM;
	}

	txdata = kzalloc(sizeof(char)+len, GFP_KERNEL);
	if(!txdata) {
		goto out1;
	}
	/* 一共发送len+1个字节的数据，第一个字节为
	寄存器首地址，len为要写入的寄存器的集合，*/
    #if 1
	*txdata = reg & ~0x80;	/* 写数据的时候首寄存器地址bit8要清零 */
    memcpy(txdata+1, buf, len);	/* 把len个寄存器拷贝到txdata里，等待发送 */
	t->tx_buf = txdata;			/* 要发送的数据 */
	t->len = len+1;				/* t->len=发送的长度+读取的长度 */
	spi_message_init(&m);		/* 初始化spi_message */
	spi_message_add_tail(t, &m);/* 将spi_transfer添加到spi_message队列 */
	ret = spi_sync(spi, &m);	/* 同步发送 */
    #else
    //第一步，发送寄存器地址
    txdata[0] = reg & ~0x80;
    t->tx_buf = txdata;
    t->len = 1;
    spi_message_init(&m);
	spi_message_add_tail(t, &m);
	ret = spi_sync(spi, &m);

    //第二步，写入数据
    t->tx_buf = buf;
    t->len = len;
    spi_message_init(&m);
	spi_message_add_tail(t, &m);
	ret = spi_sync(spi, &m);
    #endif
    if(ret) {
        goto out2;
    }
out2:
	kfree(txdata);				/* 释放内存 */
out1:
	kfree(t);					/* 释放内存 */
	return ret;
}
/*
 * @description	: 读取icm20608指定寄存器值，读取一个寄存器
 * @param - dev:  icm20608设备
 * @param - reg:  要读取的寄存器
 * @return 	  :   读取到的寄存器值
 */
static unsigned char icm20608_read_onereg(struct icm20608_dev *dev, u8 reg) {
	u8 data = 0;
	icm20608_read_regs(dev, reg, &data, 1);
	return data;
}
/*
 * @description	: 向icm20608指定寄存器写入指定的值，写一个寄存器
 * @param - dev:  icm20608设备
 * @param - reg:  要写的寄存器
 * @param - data: 要写入的值
 * @return   :    无
 */
static void icm20608_write_onereg(struct icm20608_dev *dev, u8 reg, u8 value) {
	u8 buf = value;
	icm20608_write_regs(dev, reg, &buf, 1);
}
void icm20608_readdata(struct icm20608_dev *dev) {
	unsigned char data[14] = { 0 };
	icm20608_read_regs(dev, ICM20_ACCEL_XOUT_H, data, 14);

	dev->accel_x_adc = (signed short)((data[0] << 8) | data[1]);
	dev->accel_y_adc = (signed short)((data[2] << 8) | data[3]);
	dev->accel_z_adc = (signed short)((data[4] << 8) | data[5]);
	dev->temp_adc    = (signed short)((data[6] << 8) | data[7]);
	dev->gyro_x_adc  = (signed short)((data[8] << 8) | data[9]);
	dev->gyro_y_adc  = (signed short)((data[10] << 8) | data[11]);
	dev->gyro_z_adc  = (signed short)((data[12] << 8) | data[13]);
}


static int icm20608_open(struct inode *inode, struct file *filp){
	filp->private_data = &icm20608dev; /* 设置私有数据 */
	return 0;
}
static ssize_t icm20608_read(struct file *filp, char __user *buf, size_t cnt, loff_t *off){
	signed int data[7];
	long err = 0;
	struct icm20608_dev *dev = (struct icm20608_dev *)filp->private_data;

	icm20608_readdata(dev);
	data[0] = dev->gyro_x_adc;
	data[1] = dev->gyro_y_adc;
	data[2] = dev->gyro_z_adc;
	data[3] = dev->accel_x_adc;
	data[4] = dev->accel_y_adc;
	data[5] = dev->accel_z_adc;
	data[6] = dev->temp_adc;
	err = copy_to_user(buf, data, sizeof(data));
	return 0;
}
static int icm20608_release(struct inode *inode, struct file *filp){
	return 0;
}
static const struct file_operations icm20608_ops = {
	.owner = THIS_MODULE,
	.open = icm20608_open,
	.read = icm20608_read,
	.release = icm20608_release,
};

void icm20608_reginit(void){
	u8 value = 0;
	icm20608_write_onereg(&icm20608dev, ICM20_PWR_MGMT_1, 0x80);
	mdelay(50);
	icm20608_write_onereg(&icm20608dev, ICM20_PWR_MGMT_1, 0x01);
	mdelay(50);
	value = icm20608_read_onereg(&icm20608dev, ICM20_WHO_AM_I);
	printk("ICM20608 ID = %#X\r\n", value);
	icm20608_write_onereg(&icm20608dev, ICM20_SMPLRT_DIV, 0x00); 	/* 输出速率是内部采样率					*/
	icm20608_write_onereg(&icm20608dev, ICM20_GYRO_CONFIG, 0x18); 	/* 陀螺仪±2000dps量程 				*/
	icm20608_write_onereg(&icm20608dev, ICM20_ACCEL_CONFIG, 0x18); 	/* 加速度计±16G量程 					*/
	icm20608_write_onereg(&icm20608dev, ICM20_CONFIG, 0x04); 		/* 陀螺仪低通滤波BW=20Hz 				*/
	icm20608_write_onereg(&icm20608dev, ICM20_ACCEL_CONFIG2, 0x04); /* 加速度计低通滤波BW=21.2Hz 			*/
	icm20608_write_onereg(&icm20608dev, ICM20_PWR_MGMT_2, 0x00); 	/* 打开加速度计和陀螺仪所有轴 				*/
	icm20608_write_onereg(&icm20608dev, ICM20_LP_MODE_CFG, 0x00); 	/* 关闭低功耗 						*/
	icm20608_write_onereg(&icm20608dev, ICM20_FIFO_EN, 0x00);		/* 关闭FIFO						*/
}
static int icm20608_probe(struct spi_device *spi){
	if (icm20608dev.major) {
		icm20608dev.devid = MKDEV(icm20608dev.major, 0);
		register_chrdev_region(icm20608dev.devid, ICM20608_CNT, ICM20608_NAME);
	} else {
		alloc_chrdev_region(&icm20608dev.devid, 0, ICM20608_CNT, ICM20608_NAME);
		icm20608dev.major = MAJOR(icm20608dev.devid);
	}

	cdev_init(&icm20608dev.cdev, &icm20608_ops);
	cdev_add(&icm20608dev.cdev, icm20608dev.devid, ICM20608_CNT);

	icm20608dev.class = class_create(THIS_MODULE, ICM20608_NAME);
	if (IS_ERR(icm20608dev.class)) {
		return PTR_ERR(icm20608dev.class);
	}
	icm20608dev.device = device_create(icm20608dev.class, NULL, icm20608dev.devid, NULL, ICM20608_NAME);
	if (IS_ERR(icm20608dev.device)) {
		return PTR_ERR(icm20608dev.device);
	}

	/*初始化spi_device */
	spi->mode = SPI_MODE_0;	/*MODE0，CPOL=0，CPHA=0*/

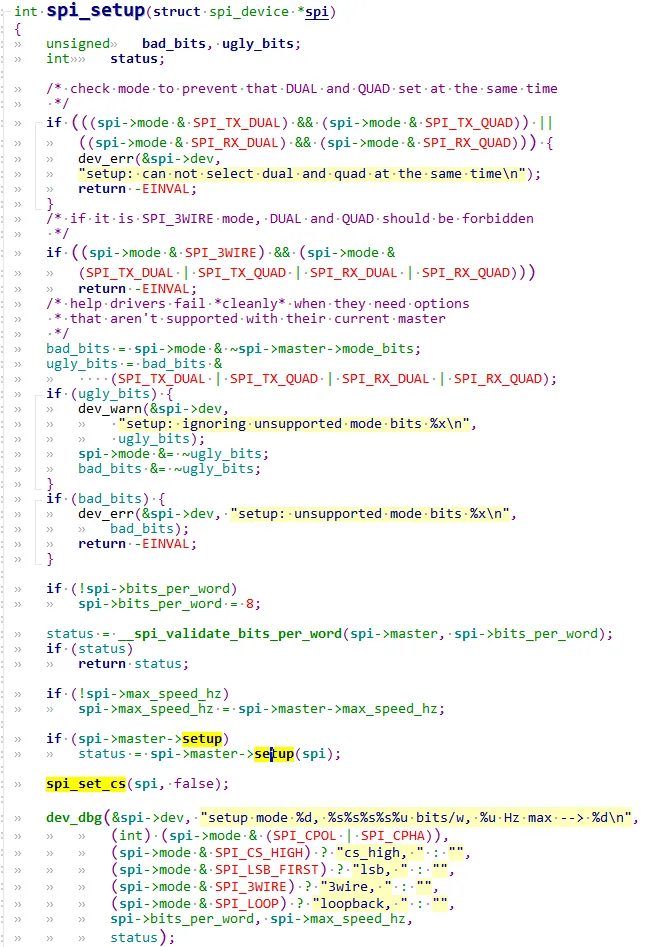

	spi_setup(spi);
	icm20608dev.private_data = spi; /* 设置私有数据 */
	/* 初始化ICM20608内部寄存器 */
	icm20608_reginit();
	return 0;
}
static int icm20608_remove(struct spi_device *spi) {
	cdev_del(&icm20608dev.cdev);
	unregister_chrdev_region(icm20608dev.devid, ICM20608_CNT);
	device_destroy(icm20608dev.class, icm20608dev.devid);
	class_destroy(icm20608dev.class);
	return 0;
}

/* 传统匹配方式ID列表 */
static const struct spi_device_id icm20608_id[] = {
	{"alientek,icm20608", 0},
	{}
};

/* 设备树匹配列表 */
static const struct of_device_id icm20608_of_match[] = {
	{ .compatible = "alientek,icm20608" },
	{ /* Sentinel */ }
};

/* SPI驱动结构体 */
static struct spi_driver icm20608_driver = {
	.probe = icm20608_probe,
	.remove = icm20608_remove,
	.driver = {
			.owner = THIS_MODULE,
		   	.name = "icm20608",
		   	.of_match_table = icm20608_of_match,
		   },
	.id_table = icm20608_id,
};

static int __init icm20608_init(void)
{
	return spi_register_driver(&icm20608_driver);
}

static void __exit icm20608_exit(void)
{
	spi_unregister_driver(&icm20608_driver);
}

module_init(icm20608_init);
module_exit(icm20608_exit);
MODULE_LICENSE("GPL");

#include "stdio.h"
#include "unistd.h"
#include "sys/types.h"
#include "sys/stat.h"
#include "sys/ioctl.h"
#include "fcntl.h"
#include "stdlib.h"
#include "string.h"
#include <poll.h>
#include <sys/select.h>
#include <sys/time.h>
#include <signal.h>
#include <fcntl.h>
int main(int argc, char *argv[])
{
	int fd;
	char *filename;
	signed int databuf[7];
	unsigned char data[14];
	signed int gyro_x_adc, gyro_y_adc, gyro_z_adc;
	signed int accel_x_adc, accel_y_adc, accel_z_adc;
	signed int temp_adc;

	float gyro_x_act, gyro_y_act, gyro_z_act;
	float accel_x_act, accel_y_act, accel_z_act;
	float temp_act;
	int ret = 0;

	if (argc != 2) {
		printf("Error Usage!\r\n");
		return -1;
	}
	filename = argv[1];
	fd = open(filename, O_RDWR);
	if(fd < 0) {
		printf("can't open file %s\r\n", filename);
		return -1;
	}
	while (1) {
		ret = read(fd, databuf, sizeof(databuf));
		if(ret == 0) { 			/* 数据读取成功 */
			gyro_x_adc = databuf[0];
			gyro_y_adc = databuf[1];
			gyro_z_adc = databuf[2];
			accel_x_adc = databuf[3];
			accel_y_adc = databuf[4];
			accel_z_adc = databuf[5];
			temp_adc = databuf[6];

			/* 计算实际值 */
			gyro_x_act = (float)(gyro_x_adc)  / 16.4;
			gyro_y_act = (float)(gyro_y_adc)  / 16.4;
			gyro_z_act = (float)(gyro_z_adc)  / 16.4;
			accel_x_act = (float)(accel_x_adc) / 2048;
			accel_y_act = (float)(accel_y_adc) / 2048;
			accel_z_act = (float)(accel_z_adc) / 2048;
			temp_act = ((float)(temp_adc) - 25 ) / 326.8 + 25;

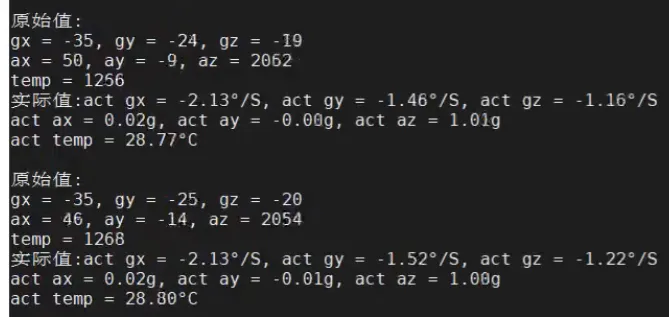

			printf("\r\n原始值:\r\n");
			printf("gx = %d, gy = %d, gz = %d\r\n", gyro_x_adc, gyro_y_adc, gyro_z_adc);
			printf("ax = %d, ay = %d, az = %d\r\n", accel_x_adc, accel_y_adc, accel_z_adc);
			printf("temp = %d\r\n", temp_adc);
			printf("实际值:");
			printf("act gx = %.2f°/S, act gy = %.2f°/S, act gz = %.2f°/S\r\n", gyro_x_act, gyro_y_act, gyro_z_act);
			printf("act ax = %.2fg, act ay = %.2fg, act az = %.2fg\r\n", accel_x_act, accel_y_act, accel_z_act);
			printf("act temp = %.2f°C\r\n", temp_act);
		}
		usleep(100000); /*100ms */
	}
	close(fd);
	return 0;
}

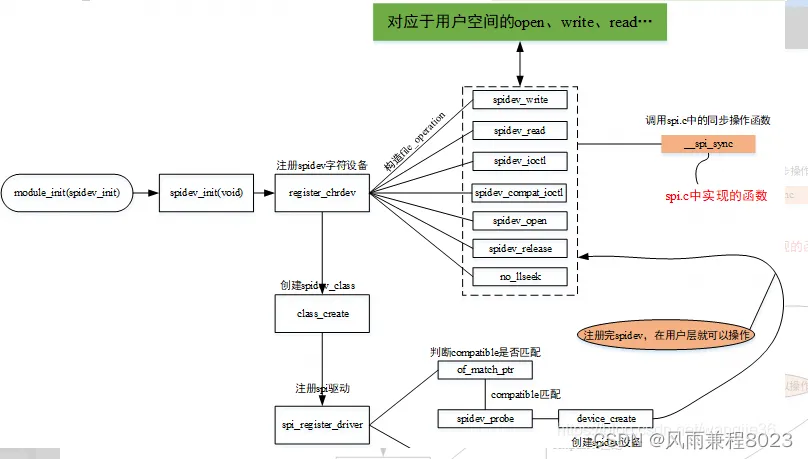

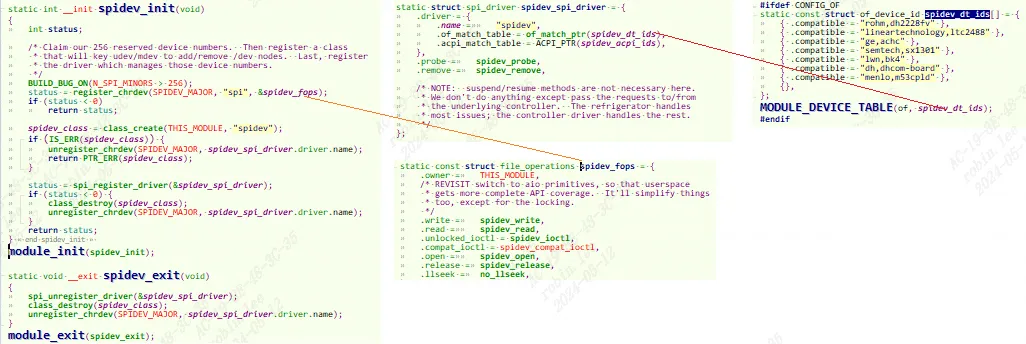

static const struct of_device_id spidev_dt_ids[] = {
	{ .compatible = "rohm,dh2228fv" },
	{ .compatible = "lineartechnology,ltc2488" },
	{ .compatible = "ge,achc" },
	{ .compatible = "nanopi,spidev" },
	{ .compatible = "semtech,sx1301" },
	{},
};
static struct spi_driver spidev_spi_driver = {
	.driver = {
		.name =		"spidev",
		.of_match_table = of_match_ptr(spidev_dt_ids),
		.acpi_match_table = ACPI_PTR(spidev_acpi_ids),
	},
	.probe =	spidev_probe,
	.remove =	spidev_remove,
};
static int spidev_probe(struct spi_device *spi){
	struct spidev_data	*spidev;
	int			status;
	unsigned long		minor;

	if (spi->dev.of_node && !of_match_device(spidev_dt_ids, &spi->dev)) {
		dev_err(&spi->dev, "buggy DT: spidev listed directly in DT\n");
		WARN_ON(spi->dev.of_node &&
			!of_match_device(spidev_dt_ids, &spi->dev));
	}

	spidev_probe_acpi(spi);
	/* Allocate driver data */
	spidev = kzalloc(sizeof(*spidev), GFP_KERNEL);
	if (!spidev)
		return -ENOMEM;
	/* Initialize the driver data */
	spidev->spi = spi;
	spin_lock_init(&spidev->spi_lock);
	mutex_init(&spidev->buf_lock);
	INIT_LIST_HEAD(&spidev->device_entry);
	/* If we can allocate a minor number, hook up this device.
	 * Reusing minors is fine so long as udev or mdev is working.
	 */
	mutex_lock(&device_list_lock);
	minor = find_first_zero_bit(minors, N_SPI_MINORS);
	if (minor < N_SPI_MINORS) {
		struct device *dev;
		spidev->devt = MKDEV(SPIDEV_MAJOR, minor);
		dev = device_create(spidev_class, &spi->dev, spidev->devt,
				    spidev, "spidev%d.%d",
				    spi->master->bus_num, spi->chip_select);
		status = PTR_ERR_OR_ZERO(dev);
	} else {
		dev_dbg(&spi->dev, "no minor number available!\n");
		status = -ENODEV;
	}
	if (status == 0) {
		set_bit(minor, minors);
		list_add(&spidev->device_entry, &device_list);
	}
	mutex_unlock(&device_list_lock);
	spidev->speed_hz = spi->max_speed_hz;
	if (status == 0)
		spi_set_drvdata(spi, spidev);
	else
		kfree(spidev);

	return status;
}

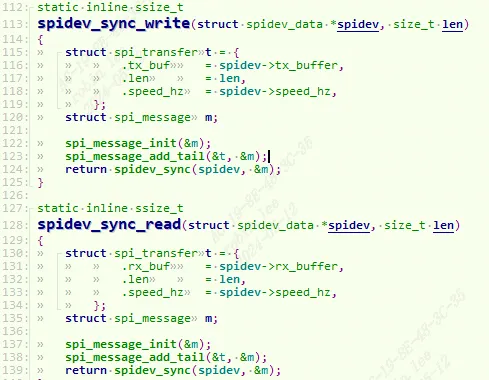

spidev_read
	->spidev_sync_read
		->spidev_sync
			->spi_sync

spidev_write
	->spidev_sync_write
		->spidev_sync
			->spi_sync

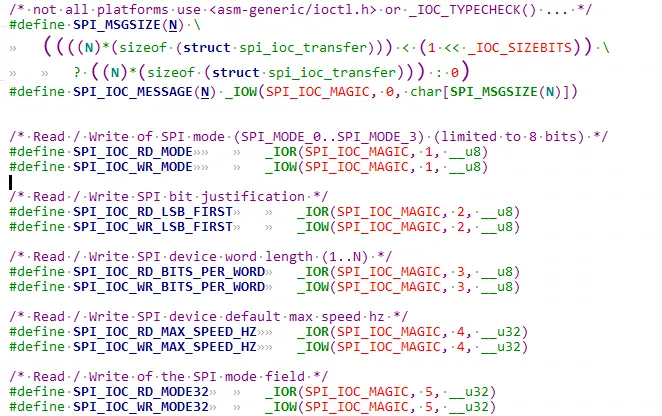

static long spidev_ioctl(struct file *filp, unsigned int cmd, unsigned long arg) {
	int			retval = 0;
	struct spidev_data	*spidev;
	struct spi_device	*spi;
	u32			tmp;
	unsigned		n_ioc;
	struct spi_ioc_transfer	*ioc;
    /* Check type and command number */
    if (_IOC_TYPE(cmd) != SPI_IOC_MAGIC)
        return -ENOTTY;
    /* guard against device removal before, or while,
     * we issue this ioctl.
     */
    spidev = filp->private_data;
    spin_lock_irq(&spidev->spi_lock);
    spi = spi_dev_get(spidev->spi);
    spin_unlock_irq(&spidev->spi_lock);

    if (spi == NULL)
        return -ESHUTDOWN;

    /* use the buffer lock here for triple duty:
     *  - prevent I/O (from us) so calling spi_setup() is safe;
     *  - prevent concurrent SPI_IOC_WR_* from morphing
     *    data fields while SPI_IOC_RD_* reads them;
     *  - SPI_IOC_MESSAGE needs the buffer locked "normally".
     */
    mutex_lock(&spidev->buf_lock);

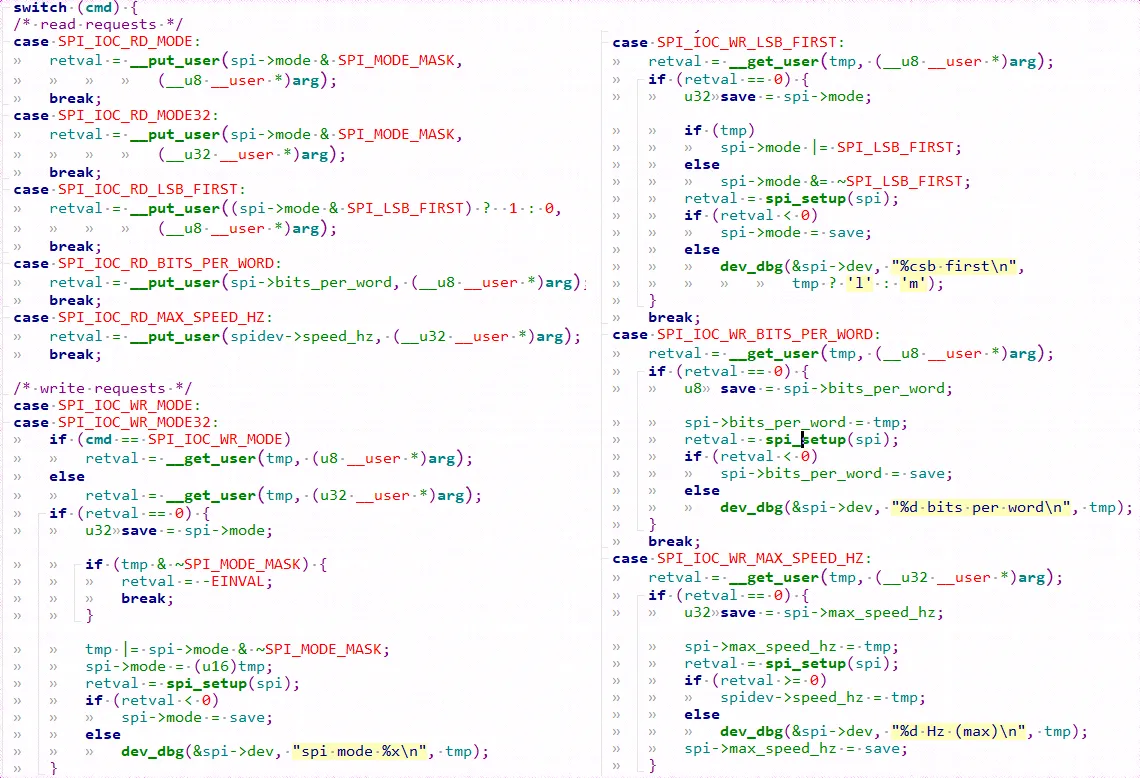

    switch (cmd) {
    /* read requests */
    case SPI_IOC_RD_MODE:
        retval = put_user(spi->mode & SPI_MODE_MASK,
                    (__u8 __user *)arg);
        break;
    case SPI_IOC_RD_MODE32:
        retval = put_user(spi->mode & SPI_MODE_MASK,
                    (__u32 __user *)arg);
        break;
    case SPI_IOC_RD_LSB_FIRST:
        retval = put_user((spi->mode & SPI_LSB_FIRST) ?  1 : 0,
                    (__u8 __user *)arg);
        break;
    case SPI_IOC_RD_BITS_PER_WORD:
        retval = put_user(spi->bits_per_word, (__u8 __user *)arg);
        break;
    case SPI_IOC_RD_MAX_SPEED_HZ:
        retval = put_user(spidev->speed_hz, (__u32 __user *)arg);
        break;

    /* write requests */
    case SPI_IOC_WR_MODE:
    case SPI_IOC_WR_MODE32:
        if (cmd == SPI_IOC_WR_MODE)
            retval = get_user(tmp, (u8 __user *)arg);
        else
            retval = get_user(tmp, (u32 __user *)arg);
        if (retval == 0) {
            struct spi_controller *ctlr = spi->controller;
            u32	save = spi->mode;

            if (tmp & ~SPI_MODE_MASK) {
                retval = -EINVAL;
                break;
            }

            if (ctlr->use_gpio_descriptors && ctlr->cs_gpiods &&
                ctlr->cs_gpiods[spi->chip_select])
                tmp |= SPI_CS_HIGH;

            tmp |= spi->mode & ~SPI_MODE_MASK;
            spi->mode = (u16)tmp;
            retval = spi_setup(spi);
            if (retval < 0)
                spi->mode = save;
            else
                dev_dbg(&spi->dev, "spi mode %x\n", tmp);
        }
        break;
    case SPI_IOC_WR_LSB_FIRST:
        retval = get_user(tmp, (__u8 __user *)arg);
        if (retval == 0) {
            u32	save = spi->mode;

            if (tmp)
                spi->mode |= SPI_LSB_FIRST;
            else
                spi->mode &= ~SPI_LSB_FIRST;
            retval = spi_setup(spi);
            if (retval < 0)
                spi->mode = save;
            else
                dev_dbg(&spi->dev, "%csb first\n",
                        tmp ? 'l' : 'm');
        }
        break;
    case SPI_IOC_WR_BITS_PER_WORD:
        retval = get_user(tmp, (__u8 __user *)arg);
        if (retval == 0) {
            u8	save = spi->bits_per_word;

            spi->bits_per_word = tmp;
            retval = spi_setup(spi);
            if (retval < 0)
                spi->bits_per_word = save;
            else
                dev_dbg(&spi->dev, "%d bits per word\n", tmp);
        }
        break;
    case SPI_IOC_WR_MAX_SPEED_HZ:
        retval = get_user(tmp, (__u32 __user *)arg);
        if (retval == 0) {
            u32	save = spi->max_speed_hz;

            spi->max_speed_hz = tmp;
            retval = spi_setup(spi);
            if (retval == 0) {
                spidev->speed_hz = tmp;
                dev_dbg(&spi->dev, "%d Hz (max)\n",
                    spidev->speed_hz);
            }
            spi->max_speed_hz = save;
        }
        break;
    default:
        /* segmented and/or full-duplex I/O request */
        /* Check message and copy into scratch area */
        ioc = spidev_get_ioc_message(cmd,
                (struct spi_ioc_transfer __user *)arg, &n_ioc);
        if (IS_ERR(ioc)) {
            retval = PTR_ERR(ioc);
            break;
        }
        if (!ioc)
            break;	/* n_ioc is also 0 */
        /* translate to spi_message, execute */
        retval = spidev_message(spidev, ioc, n_ioc);
        kfree(ioc);
        break;
    }
    mutex_unlock(&spidev->buf_lock);
    spi_dev_put(spi);
    return retval;
}

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <linux/types.h>
#include <linux/spi/spidev.h>
#include "font.h"
static int fd_spidev;
static int dc_pin_num;
void OLED_DIsp_Set_Pos(int x, int y);
void dc_pin_init(int number)
{
	// echo 509 > /sys/class/gpio/export
	// echo out > /sys/class/gpio/gpio509/direction
	char cmd[100];
	dc_pin_num = number;

	sprintf(cmd, "echo %d > /sys/class/gpio/export", number);
	system(cmd);
	sprintf(cmd, "echo out > /sys/class/gpio/gpio%d/direction", number);
	system(cmd);
}

void oled_set_dc_pin(int val)
{
	/* echo 1 > /sys/class/gpio/gpio509/value
	 * echo 0 > /sys/class/gpio/gpio509/value
	 */
	char cmd[100];
	sprintf(cmd, "echo %d > /sys/class/gpio/gpio%d/value", val, dc_pin_num);
	system(cmd);
}

void spi_write_datas(const unsigned char *buf, int len)
{
	write(fd_spidev, buf, len);
}

void oled_write_datas(const unsigned char *buf, int len)
{
	oled_set_dc_pin(1);//拉高，表示写入数据
	spi_write_datas(buf, len);
}

/**********************************************************************
	 * 函数名称： oled_write_cmd
	 * 功能描述： oled向特定地址写入数据或者命令
	 * 输入参数：@uc_data :要写入的数据
	 			@uc_cmd:为1则表示写入数据，为0表示写入命令
	 * 输出参数：无
	 * 返 回 值： 无
 ***********************************************************************/
void oled_write_cmd_data(unsigned char uc_data,unsigned char uc_cmd)
{
	unsigned char uc_read=0;
	if(uc_cmd==0)
		oled_set_dc_pin(0);
	else
		oled_set_dc_pin(1);//拉高，表示写入数据

	spi_write_datas(&uc_data, 1);//写入
}
int oled_init(void)
{
	unsigned char uc_dev_id = 0;

	oled_write_cmd_data(0xae,OLED_CMD);//关闭显示
	oled_write_cmd_data(0x00,OLED_CMD);//设置 lower column address
	oled_write_cmd_data(0x10,OLED_CMD);//设置 higher column address
	oled_write_cmd_data(0x40,OLED_CMD);//设置 display start line
	oled_write_cmd_data(0xB0,OLED_CMD);//设置page address
	oled_write_cmd_data(0x81,OLED_CMD);// contract control
	oled_write_cmd_data(0x66,OLED_CMD);//128
	oled_write_cmd_data(0xa1,OLED_CMD);//设置 segment remap
	oled_write_cmd_data(0xa6,OLED_CMD);//normal /reverse
	oled_write_cmd_data(0xa8,OLED_CMD);//multiple ratio
	oled_write_cmd_data(0x3f,OLED_CMD);//duty = 1/64
	oled_write_cmd_data(0xc8,OLED_CMD);//com scan direction
	oled_write_cmd_data(0xd3,OLED_CMD);//set displat offset
	oled_write_cmd_data(0x00,OLED_CMD);//
	oled_write_cmd_data(0xd5,OLED_CMD);//set osc division
	oled_write_cmd_data(0x80,OLED_CMD);//
	oled_write_cmd_data(0xd9,OLED_CMD);//ser pre-charge period
	oled_write_cmd_data(0x1f,OLED_CMD);//
	oled_write_cmd_data(0xda,OLED_CMD);//set com pins
	oled_write_cmd_data(0x12,OLED_CMD);//
	oled_write_cmd_data(0xdb,OLED_CMD);//set vcomh
	oled_write_cmd_data(0x30,OLED_CMD);//
	oled_write_cmd_data(0x8d,OLED_CMD);//set charge pump disable
	oled_write_cmd_data(0x14,OLED_CMD);//
	oled_write_cmd_data(0xaf,OLED_CMD);//set dispkay on
	return 0;
}
/**********************************************************************
	 * 函数名称： oled_fill_data
	 * 功能描述： 整个屏幕显示填充某个固定数据
	 * 输入参数：@fill_Data：要填充的数据
 ***********************************************************************/
int oled_fill_data(unsigned char fill_Data)
{
	unsigned char x,y;
	for(x=0;x<8;x++) {
		oled_write_cmd_data(0xb0+x,OLED_CMD);		//page0-page1
		oled_write_cmd_data(0x00,OLED_CMD);		//low column start address
		oled_write_cmd_data(0x10,OLED_CMD);		//high column start address
		for(y=0;y<128;y++)
			oled_write_cmd_data(fill_Data,OLED_DATA);//填充数据
	}
	return 0;
}
void OLED_DIsp_Clear(void)
{
    unsigned char x, y;
	char buf[128];
	memset(buf, 0, 128);
    for (y = 0; y < 8; y++) {
        OLED_DIsp_Set_Pos(0, y);
        //for (x = 0; x < 128; x++)
        //    oled_write_cmd_data(0, OLED_DATA); /* 清零 */
        oled_write_datas(buf, 128);
    }
}

/**********************************************************************
	 * 函数名称： OLED_DIsp_All
	 * 功能描述： 整个屏幕显示全部点亮，可以用于检查坏点
 ***********************************************************************/
void OLED_DIsp_All(void)
{
	unsigned char x, y;
	for (y = 0; y < 8; y++)
	{
		OLED_DIsp_Set_Pos(0, y);
		for (x = 0; x < 128; x++)
			oled_write_cmd_data(0xff, OLED_DATA); /* 全点亮 */
	}
}

//坐标设置
/**********************************************************************
	 * 函数名称： OLED_DIsp_Set_Pos
	 * 功能描述：设置要显示的位置
	 * 输入参数：@ x ：要显示的column address
	 			@y :要显示的page address
 ***********************************************************************/
void OLED_DIsp_Set_Pos(int x, int y)
{ 	oled_write_cmd_data(0xb0+y,OLED_CMD);
	oled_write_cmd_data((x&0x0f),OLED_CMD);
	oled_write_cmd_data(((x&0xf0)>>4)|0x10,OLED_CMD);
}
void OLED_DIsp_Char(int x, int y, unsigned char c)
{
	int i = 0;
	/* 得到字模 */
	const unsigned char *dots = oled_asc2_8x16[c - ' '];

	/* 发给OLED */
	OLED_DIsp_Set_Pos(x, y);
	/* 发出8字节数据 */
	//for (i = 0; i < 8; i++)
	//	oled_write_cmd_data(dots[i], OLED_DATA);
	oled_write_datas(&dots[0], 8);

	OLED_DIsp_Set_Pos(x, y+1);
	/* 发出8字节数据 */
	//for (i = 0; i < 8; i++)
		//oled_write_cmd_data(dots[i+8], OLED_DATA);
	oled_write_datas(&dots[8], 8);
}

void OLED_DIsp_String(int x, int y, char *str)
{
	unsigned char j=0;
	while (str[j]){
		OLED_DIsp_Char(x, y, str[j]);//显示单个字符
		x += 8;
		if(x > 127){
			x = 0;
			y += 2;
		}//移动显示位置
		j++;
	}
}

void OLED_DIsp_Test(void)
{
	int i;
	OLED_DIsp_String(0, 0, "wiki.100ask.net");
	OLED_DIsp_String(0, 2, "book.100ask.net");
	OLED_DIsp_String(0, 4, "bbs.100ask.net");
}

/* spi_oled /dev/spidevB.D <DC_pin_number> */
int main(int argc, char **argv)
{
	int dc_pin;

	if (argc != 3){
		printf("Usage: %s <dev/spidevB.D> <DC_pin_number>\n", argv[0]);//B表示spi bus, D表示cs片选
		return -1;
	}

	fd_spidev = open(argv[1], O_RDWR);
	if (fd_spidev < 0) {
		printf("open %s err\n", argv[1]);
		return -1;
	}

	dc_pin = strtoul(argv[2], NULL, 0);
	dc_pin_init(dc_pin);

	oled_init();
	OLED_DIsp_Clear();
	OLED_DIsp_Test();
	return 0;
}

&ecspi1 {
    pinctrl-names = "default";
    pinctrl-0 = <&pinctrl_ecspi1>;
    fsl,spi-num-chipselects = <2>;
    cs-gpios = <&gpio4 26 GPIO_ACTIVE_LOW>, <&gpio4 24 GPIO_ACTIVE_LOW>;
    status = "okay";

    oled: oled {
        compatible = "100ask,oled";
        reg = <0>;
        spi-max-frequency = <10000000>;
        dc-gpios = <&gpio4 20 GPIO_ACTIVE_HIGH>;
    };
};

#include <linux/init.h>
#include <linux/module.h>
#include <linux/ioctl.h>
#include <linux/fs.h>
#include <linux/device.h>
#include <linux/err.h>
#include <linux/list.h>
#include <linux/errno.h>
#include <linux/mutex.h>
#include <linux/slab.h>
#include <linux/compat.h>
#include <linux/of.h>
#include <linux/of_device.h>
#include <linux/acpi.h>
#include <linux/spi/spi.h>
#include <linux/spi/spidev.h>
#include <linux/uaccess.h>
#include <linux/gpio/consumer.h>

#define OLED_IOC_INIT 			123
#define OLED_IOC_SET_POS 		124

//为0 表示命令，为1表示数据
#define OLED_CMD 	0
#define OLED_DATA 	1

static struct spi_device *oled;
static int major;
static struct gpio_desc *dc_gpio;

static void dc_pin_init(void) {
	gpiod_direction_output(dc_gpio, 1);
}

static void oled_set_dc_pin(int val) {
	gpiod_set_value(dc_gpio, val);
}

static void spi_write_datas(const unsigned char *buf, int len) {
	spi_write(oled, buf, len);
}

static void oled_write_cmd_data(unsigned char uc_data,unsigned char uc_cmd) {
	if(uc_cmd==0)
		oled_set_dc_pin(0);
	else
		oled_set_dc_pin(1);//拉高，表示写入数据

	spi_write_datas(&uc_data, 1);//写入
}

static int oled_init(void) {
	oled_write_cmd_data(0xae,OLED_CMD);//关闭显示
	oled_write_cmd_data(0x00,OLED_CMD);//设置 lower column address
	oled_write_cmd_data(0x10,OLED_CMD);//设置 higher column address
	oled_write_cmd_data(0x40,OLED_CMD);//设置 display start line
	oled_write_cmd_data(0xB0,OLED_CMD);//设置page address
	oled_write_cmd_data(0x81,OLED_CMD);// contract control
	oled_write_cmd_data(0x66,OLED_CMD);//128
	oled_write_cmd_data(0xa1,OLED_CMD);//设置 segment remap
	oled_write_cmd_data(0xa6,OLED_CMD);//normal /reverse
	oled_write_cmd_data(0xa8,OLED_CMD);//multiple ratio
	oled_write_cmd_data(0x3f,OLED_CMD);//duty = 1/64
	oled_write_cmd_data(0xc8,OLED_CMD);//com scan direction
	oled_write_cmd_data(0xd3,OLED_CMD);//set displat offset
	oled_write_cmd_data(0x00,OLED_CMD);//
	oled_write_cmd_data(0xd5,OLED_CMD);//set osc division
	oled_write_cmd_data(0x80,OLED_CMD);//
	oled_write_cmd_data(0xd9,OLED_CMD);//ser pre-charge period
	oled_write_cmd_data(0x1f,OLED_CMD);//
	oled_write_cmd_data(0xda,OLED_CMD);//set com pins
	oled_write_cmd_data(0x12,OLED_CMD);//
	oled_write_cmd_data(0xdb,OLED_CMD);//set vcomh
	oled_write_cmd_data(0x30,OLED_CMD);//
	oled_write_cmd_data(0x8d,OLED_CMD);//set charge pump disable
	oled_write_cmd_data(0x14,OLED_CMD);//
	oled_write_cmd_data(0xaf,OLED_CMD);//set dispkay on

	return 0;
}

static void OLED_DIsp_Set_Pos(int x, int y)
{ 	oled_write_cmd_data(0xb0+y,OLED_CMD);
	oled_write_cmd_data((x&0x0f),OLED_CMD);
	oled_write_cmd_data(((x&0xf0)>>4)|0x10,OLED_CMD);
}

static long spidev_ioctl(struct file *filp, unsigned int cmd, unsigned long arg) {
	int x, y;
	/* 根据cmd操作硬件 */
	switch (cmd) {
		case OLED_IOC_INIT: /* init */
		{
			dc_pin_init();
			oled_init();
			break;
		}
		case OLED_IOC_SET_POS: /* set pos */
		{
			x = arg & 0xff;
			y = (arg >> 8) & 0xff;
			OLED_DIsp_Set_Pos(x, y);
			break;
		}
	}
	return 0;
}

static ssize_t spidev_write(struct file *filp, const char __user *buf, size_t count, loff_t *f_pos) {
	char *ker_buf;
	int err;
	ker_buf = kmalloc(count, GFP_KERNEL);
	err = copy_from_user(ker_buf, buf, count);
	oled_set_dc_pin(1);//拉高，表示写入数据
	spi_write_datas(ker_buf, count);
	kfree(ker_buf);
	return count;
}

static const struct file_operations spidev_fops = {
	.owner =	THIS_MODULE,
	.write =	spidev_write,
	.unlocked_ioctl = spidev_ioctl,
};

static struct class *spidev_class;
static const struct of_device_id spidev_dt_ids[] = {
	{ .compatible = "100ask,oled" },
	{},
};

static int spidev_probe(struct spi_device *spi)
{
	oled = spi;

	major = register_chrdev(0, "100ask_oled", &spidev_fops);
	spidev_class = class_create(THIS_MODULE, "100ask_oled");
	device_create(spidev_class, NULL, MKDEV(major, 0), NULL, "100ask_oled");

	/* 3. 获得GPIO引脚 */
	dc_gpio = gpiod_get(&spi->dev, "dc", 0);
	return 0;
}

static int spidev_remove(struct spi_device *spi) {
	gpiod_put(dc_gpio);
	device_destroy(spidev_class, MKDEV(major, 0));
	class_destroy(spidev_class);
	unregister_chrdev(major, "cumtchw_oled");
	return 0;
}
static struct spi_driver spidev_spi_driver = {
	.driver = {
		.name =		"cumtchw_spi_oled_drv",
		.of_match_table = of_match_ptr(spidev_dt_ids),
	},
	.probe =	spidev_probe,
	.remove =	spidev_remove,
};
static int __init spidev_init(void) {
	int status;
	status = spi_register_driver(&spidev_spi_driver);
	if (status < 0) {
	}
	return status;
}
static void __exit spidev_exit(void){
	spi_unregister_driver(&spidev_spi_driver);
}
module_init(spidev_init);
module_exit(spidev_exit);
MODULE_LICENSE("GPL");

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <linux/types.h>
#include <linux/spi/spidev.h>
#include "font.h"
#define OLED_IOC_INIT 			123
#define OLED_IOC_SET_POS 		124

//为0 表示命令，为1表示数据
#define OLED_CMD 	0
#define OLED_DATA 	1
static int fd_spidev;
static int dc_pin_num;
void OLED_DIsp_Set_Pos(int x, int y);

void oled_write_datas(const unsigned char *buf, int len)
{
	write(fd_spidev, buf, len);
}
void OLED_DIsp_Clear(void) {
    unsigned char x, y;
	char buf[128];
	memset(buf, 0, 128);
    for (y = 0; y < 8; y++) {
        OLED_DIsp_Set_Pos(0, y);
        oled_write_datas(buf, 128);
    }
}

void OLED_DIsp_All(void)  {
    unsigned char x, y;
	char buf[128];
	memset(buf, 0xff, 128);
    for (y = 0; y < 8; y++) {
        OLED_DIsp_Set_Pos(0, y);
        oled_write_datas(buf, 128);
    }
}

void OLED_DIsp_Set_Pos(int x, int y)
{
	ioctl(fd_spidev, OLED_IOC_SET_POS, x  | (y << 8));
}

void OLED_DIsp_Char(int x, int y, unsigned char c)
{
	int i = 0;
	/* 得到字模 */
	const unsigned char *dots = oled_asc2_8x16[c - ' '];

	/* 发给OLED */
	OLED_DIsp_Set_Pos(x, y);
	/* 发出8字节数据 */
	//for (i = 0; i < 8; i++)
	//	oled_write_cmd_data(dots[i], OLED_DATA);
	oled_write_datas(&dots[0], 8);

	OLED_DIsp_Set_Pos(x, y+1);
	/* 发出8字节数据 */
	//for (i = 0; i < 8; i++)
		//oled_write_cmd_data(dots[i+8], OLED_DATA);
	oled_write_datas(&dots[8], 8);
}
void OLED_DIsp_String(int x, int y, char *str)
{
	unsigned char j=0;
	while (str[j]) {
		OLED_DIsp_Char(x, y, str[j]);//显示单个字符
		x += 8;
		if(x > 127) {
			x = 0;
			y += 2;
		}//移动显示位置
		j++;
	}
}
void OLED_DIsp_Test(void) {
	int i;
	OLED_DIsp_String(0, 0, "100ask test");
}

int main(int argc, char **argv) {
	if (argc != 2) {
		printf("Usage: %s /dev/cumtchw_oled\n", argv[0]);
		return -1;
	}

	fd_spidev = open(argv[1], O_RDWR);
	if (fd_spidev < 0) {
		printf("open %s err\n", argv[1]);
		return -1;
	}
	ioctl(fd_spidev, OLED_IOC_INIT);
	OLED_DIsp_Clear();
	OLED_DIsp_Test();
	return 0;
}

struct spi_master {
	struct device	dev;	/* SPI设备的device数据结构 */
	s16			bus_num;		/* SPI总线序号 */
	u16			num_chipselect;	/* 片选信号数量 */
	u16			dma_alignment;	/* SPI控制器DMA缓冲区对齐定义 */
	u16			mode_bits;		/* 工作模式位，由驱动定义 */
	u32			min_speed_hz;	/* 最小速度 */
	u32			max_speed_hz;	/* 最小速度 */
	u16			flags;			/* 限制条件标志 */
	int			(*setup)(struct spi_device *spi);   /* 设置SPI设备的工作参数 */
	int			(*transfer)(struct spi_device *spi,	/* SPI发送函数1 */
						struct spi_message *mesg);
	void		(*cleanup)(struct spi_device *spi);	/* SPI清除函数，当spi_master被释放时调用 */
	int (*transfer_one_message)(struct spi_master *master,	/* SPI发送函数2 */
	int (*transfer_one)(struct spi_master *master, struct spi_device *spi,/* SPI发送函数3 */
			    struct spi_transfer *transfer);
	...
};

struct spi_driver {
	const struct spi_device_id *id_table;
	int			(*probe)(struct spi_device *spi);
	int			(*remove)(struct spi_device *spi);
	void			(*shutdown)(struct spi_device *spi);
	struct device_driver	driver;
};

struct spi_device {
	struct device		dev;
	struct spi_controller	*controller;
	struct spi_controller	*master;	/* compatibility layer */
	u32			max_speed_hz;
	u8			chip_select;
#define	SPI_CPHA	0x01			/* clock phase */
#define	SPI_CPOL	0x02			/* clock polarity */
#define	SPI_MODE_0	(0|0)			/* (original MicroWire) */
#define	SPI_MODE_1	(0|SPI_CPHA)
#define	SPI_MODE_2	(SPI_CPOL|0)
#define	SPI_MODE_3	(SPI_CPOL|SPI_CPHA)
#define	SPI_CS_HIGH	0x04			/* chipselect active high? */
#define	SPI_LSB_FIRST	0x08			/* per-word bits-on-wire */
#define	SPI_3WIRE	0x10			/* SI/SO signals shared */
#define	SPI_LOOP	0x20			/* loopback mode */
#define	SPI_NO_CS	0x40			/* 1 dev/bus, no chipselect */
#define	SPI_READY	0x80			/* slave pulls low to pause */
#define	SPI_TX_DUAL	0x100			/* transmit with 2 wires */
#define	SPI_TX_QUAD	0x200			/* transmit with 4 wires */
#define	SPI_RX_DUAL	0x400			/* receive with 2 wires */
#define	SPI_RX_QUAD	0x800			/* receive with 4 wires */
#define	SPI_CS_WORD	0x1000			/* toggle cs after each word */
#define	SPI_TX_OCTAL	0x2000			/* transmit with 8 wires */
#define	SPI_RX_OCTAL	0x4000			/* receive with 8 wires */
#define	SPI_3WIRE_HIZ	0x8000			/* high impedance turnaround */
	int			irq;
	void			*controller_state;
	void			*controller_data;
	char			modalias[SPI_NAME_SIZE];
	const char		*driver_override;
	int			cs_gpio;	/* LEGACY: chip select gpio */
	struct gpio_desc	*cs_gpiod;	/* chip select gpio desc */
	struct spi_delay	word_delay; /* inter-word delay */
};

struct spi_transfer {
	const void	*tx_buf;
	void		*rx_buf;
	unsigned	len;
	...
	u8		bits_per_word;
	u16		delay_usecs;
	u32		speed_hz;
	...
	struct list_head transfer_list;
};
struct spi_message {
	struct list_head	transfers;
	...
	struct spi_device	*spi;
	...
	void			(*complete)(void *context);
	void			*context;
	...
	struct list_head	queue;
};
