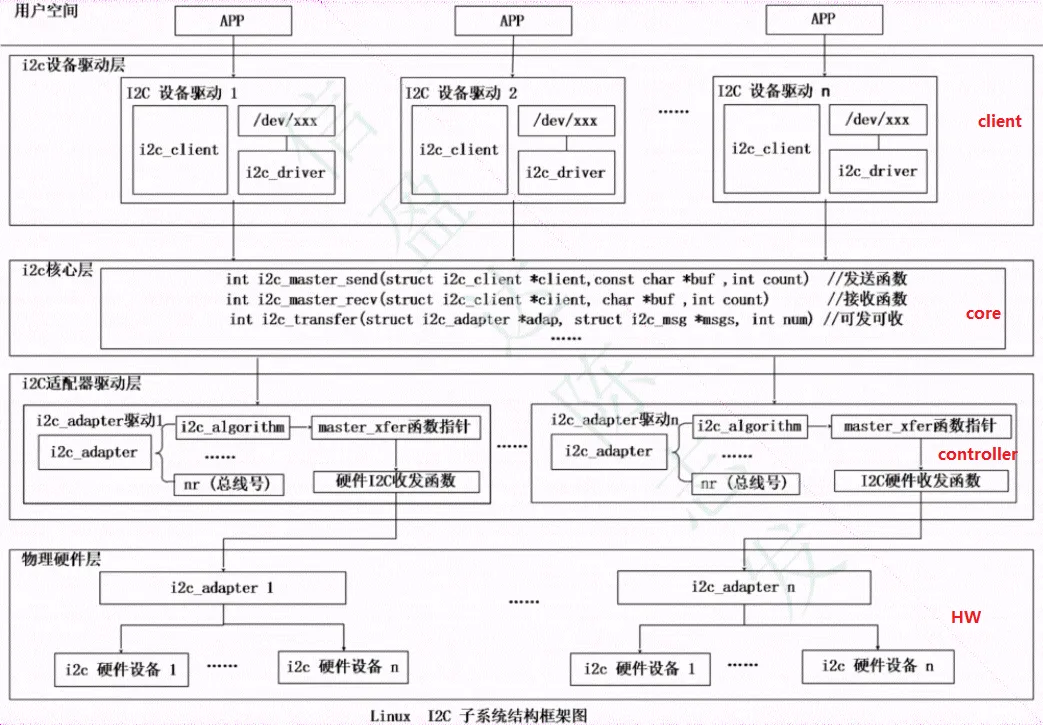

i2c设备驱动层: 作为client使用者使用i2c子系统。提供操作接口给应用层，与应用层交互数据。

I2C核心层：提供transfer send recv函数。把client设备挂载到I2C总线上；
    维护i2c driver和i2c client 链表 ，实现i2c_client和i2c_driver匹配。

I2C适配器层：底层SOC I2C控制器驱动，实现i2c时序，实现i2c总线发送和接收数据的方法。

robin.lee@WORKSTATION5:/media/robin.lee/zip/A2/linux_5.10/drivers/i2c$ ls
algos            i2c-core-acpi.c  i2c-core-of.c     i2c-dev.c           i2c-slave-testunit.c  Kconfig
busses           i2c-core-base.c  i2c-core-slave.c  i2c-mux.c           i2c-smbus.c           Makefile
i2c-boardinfo.c  i2c-core.h       i2c-core-smbus.c  i2c-slave-eeprom.c  i2c-stub.c            muxes

/*
 * i2c_adapter is the structure used to identify a physical i2c bus along
 * with the access algorithms necessary to access it.
 */
struct i2c_adapter {
	struct module *owner;
	unsigned int class;		  /* classes to allow probing for */
	const struct i2c_algorithm *algo; /* the algorithm to access the bus */
	void *algo_data;

	/* data fields that are valid for all devices	*/
	struct rt_mutex bus_lock;
	int timeout;			/* in jiffies */
	int retries;
	struct device dev;		/* the adapter device */
	int nr;   //总线的编号
	char name[48];
	struct completion dev_released;
	struct mutex userspace_clients_lock;
	struct list_head userspace_clients;
	struct i2c_bus_recovery_info *bus_recovery_info;
	const struct i2c_adapter_quirks *quirks;
};

struct i2c_algorithm {
	/*
	 * If an adapter algorithm can't do I2C-level access, set master_xfer
	 * to NULL. If an adapter algorithm can do SMBus access, set
	 * smbus_xfer. If set to NULL, the SMBus protocol is simulated
	 * using common I2C messages.
	 *
	 * master_xfer should return the number of messages successfully
	 * processed, or a negative value on error
	 */
	int (*master_xfer)(struct i2c_adapter *adap, struct i2c_msg *msgs,
			   int num);
	int (*master_xfer_atomic)(struct i2c_adapter *adap,
				   struct i2c_msg *msgs, int num);
	int (*smbus_xfer)(struct i2c_adapter *adap, u16 addr,
			  unsigned short flags, char read_write,
			  u8 command, int size, union i2c_smbus_data *data);
	int (*smbus_xfer_atomic)(struct i2c_adapter *adap, u16 addr,
				 unsigned short flags, char read_write,
				 u8 command, int size, union i2c_smbus_data *data);
	/* To determine what the adapter supports */
	u32 (*functionality)(struct i2c_adapter *adap);
#if IS_ENABLED(CONFIG_I2C_SLAVE)
	int (*reg_slave)(struct i2c_client *client);
	int (*unreg_slave)(struct i2c_client *client);
#endif
};

/* To determine what functionality is present */
#define I2C_FUNC_I2C			0x00000001
#define I2C_FUNC_10BIT_ADDR		0x00000002
#define I2C_FUNC_PROTOCOL_MANGLING	0x00000004 /* I2C_M_IGNORE_NAK etc. */
#define I2C_FUNC_SMBUS_PEC		0x00000008
#define I2C_FUNC_NOSTART		0x00000010 /* I2C_M_NOSTART */
#define I2C_FUNC_SLAVE			0x00000020
#define I2C_FUNC_SMBUS_BLOCK_PROC_CALL	0x00008000 /* SMBus 2.0 */
#define I2C_FUNC_SMBUS_QUICK		0x00010000
#define I2C_FUNC_SMBUS_READ_BYTE	0x00020000
#define I2C_FUNC_SMBUS_WRITE_BYTE	0x00040000
#define I2C_FUNC_SMBUS_READ_BYTE_DATA	0x00080000
#define I2C_FUNC_SMBUS_WRITE_BYTE_DATA	0x00100000
#define I2C_FUNC_SMBUS_READ_WORD_DATA	0x00200000
#define I2C_FUNC_SMBUS_WRITE_WORD_DATA	0x00400000
#define I2C_FUNC_SMBUS_PROC_CALL	0x00800000
#define I2C_FUNC_SMBUS_READ_BLOCK_DATA	0x01000000
#define I2C_FUNC_SMBUS_WRITE_BLOCK_DATA 0x02000000
#define I2C_FUNC_SMBUS_READ_I2C_BLOCK	0x04000000 /* I2C-like block xfer  */
#define I2C_FUNC_SMBUS_WRITE_I2C_BLOCK	0x08000000 /* w/ 1-byte reg. addr. */
#define I2C_FUNC_SMBUS_HOST_NOTIFY	0x10000000
#define I2C_FUNC_SMBUS_BYTE		(I2C_FUNC_SMBUS_READ_BYTE | \
					 I2C_FUNC_SMBUS_WRITE_BYTE)
#define I2C_FUNC_SMBUS_BYTE_DATA	(I2C_FUNC_SMBUS_READ_BYTE_DATA | \
					 I2C_FUNC_SMBUS_WRITE_BYTE_DATA)
#define I2C_FUNC_SMBUS_WORD_DATA	(I2C_FUNC_SMBUS_READ_WORD_DATA | \
					 I2C_FUNC_SMBUS_WRITE_WORD_DATA)
#define I2C_FUNC_SMBUS_BLOCK_DATA	(I2C_FUNC_SMBUS_READ_BLOCK_DATA | \
					 I2C_FUNC_SMBUS_WRITE_BLOCK_DATA)
#define I2C_FUNC_SMBUS_I2C_BLOCK	(I2C_FUNC_SMBUS_READ_I2C_BLOCK | \
					 I2C_FUNC_SMBUS_WRITE_I2C_BLOCK)

struct i2c_driver {
	unsigned int class;
	/* Notifies the driver that a new bus has appeared. You should avoid
	 * using this, it will be removed in a near future.
	 */
	int (*attach_adapter)(struct i2c_adapter *) __deprecated;

	/* Standard driver model interfaces */
	int (*probe)(struct i2c_client *, const struct i2c_device_id *);
	int (*remove)(struct i2c_client *);

	/* New driver model interface to aid the seamless removal of the
	 * current probe()'s, more commonly unused than used second parameter.
	 */
	int (*probe_new)(struct i2c_client *);

	/* driver model interfaces that don't relate to enumeration  */
	void (*shutdown)(struct i2c_client *);

	/* Alert callback, for example for the SMBus alert protocol.
	 * The format and meaning of the data value depends on the protocol.
	 * For the SMBus alert protocol, there is a single bit of data passed
	 * as the alert response's low bit ("event flag").
	 * For the SMBus Host Notify protocol, the data corresponds to the
	 * 16-bit payload data reported by the slave device acting as master.
	 */
	void (*alert)(struct i2c_client *, enum i2c_alert_protocol protocol,
		      unsigned int data); // 警告回调函数（例如SMBus警报协议）

	/* a ioctl like command that can be used to perform specific functions
	 * with the device.
	 */
	int (*command)(struct i2c_client *client, unsigned int cmd, void *arg);//类似于ioctl 的命令控制函数
	struct device_driver driver;
	const struct i2c_device_id *id_table; // 这个i2c驱动支持的设备链表

	/* Device detection callback for automatic device creation */
	int (*detect)(struct i2c_client *, struct i2c_board_info *); // 检测设备的回调函数；
	const unsigned short *address_list; // 要探测的I2C地址（用于检测）
	struct list_head clients;
	bool disable_i2c_core_irq_mapping;
};

/* drivers/rtc/rtc-ds1307.c */
static struct i2c_driver ds1307_driver = {
    .driver = {
        .name   = "rtc-ds1307",
        .of_match_table = of_match_ptr(ds1307_of_match),
        .acpi_match_table = ACPI_PTR(ds1307_acpi_ids),
    },
    .probe      = ds1307_probe,
    .id_table   = ds1307_id,
};

struct i2c_client{
 	unsigned short flags;   //描述从设备的一些特性，如I2C_CLIENT_TEN---使用的10位地址
 	unsigned short addr;   //设备的i2c地址，7位地址用低7位，10位地址用低10位。
 	char name[I2C_NAME_SIZE]; // 设备的名字；

 	struct i2c_adapter *adapter;   //所属的适配器i2c_adapter,挂载在哪条i2c物理总线上
	struct i2c_driver  *driver;    //匹配成功的i2c_driver
    int irq;
}；

struct i2c_board_info {
    char type[I2C_NAME_SIZE];//名字，驱动层和设备层匹配参数
    unsigned short flags;//设备地址位数，一般不填或填0表示7位地址
    unsigned short addr;//IIC设备地址
    void *platform_data;//私有数据
    struct dev_archdata *archdata;
    struct device_node *of_node;
    int irq;//中断号
};

struct i2c_msg {
	__u16 addr;	/* 从机在I2C总线上的地址*/
	__u16 flags;	/* 消息特征的标志 */

//下面的宏定义就是消息特征的标志
#define I2C_M_TEN		0x0010	/* this is a ten bit chip address */
#define I2C_M_RD		0x0001	/* read data, from slave to master */
#define I2C_M_NOSTART		0x4000	/* if I2C_FUNC_PROTOCOL_MANGLING */
#define I2C_M_REV_DIR_ADDR	0x2000	/* if I2C_FUNC_PROTOCOL_MANGLING */
#define I2C_M_IGNORE_NAK	0x1000	/* if I2C_FUNC_PROTOCOL_MANGLING */
#define I2C_M_NO_RD_ACK		0x0800	/* if I2C_FUNC_PROTOCOL_MANGLING */
#define I2C_M_RECV_LEN		0x0400	/* length will be first received byte */

	__u16 len;		/* 消息数据长度，单位是字节 */
	__u8 *buf;		/* 指向存放消息数据的缓冲区 */
};

int i2c_add_adapter(struct i2c_adapter *adapter);//include/linux/i2c.h
int i2c_add_numbered_adapter(struct i2c_adapter *adap);

void i2c_del_adapter(struct i2c_adapter * adap);

int i2c_register_driver(struct module *owner, struct i2c_driver *driver);//include/linux/i2c.h
/* use a define to avoid include chaining to get THIS_MODULE */
#define i2c_add_driver(driver) \
	i2c_register_driver(THIS_MODULE, driver);

void i2c_del_driver(struct i2c_driver *driver);

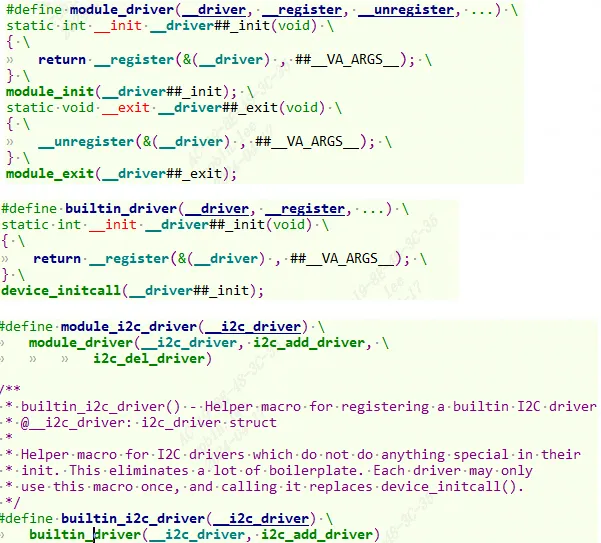

#define module_driver(__driver, __register, __unregister, ...) \
static int __init __driver##_init(void) \
{ \
	return __register(&(__driver) , ##__VA_ARGS__); \
} \
module_init(__driver##_init); \
static void __exit __driver##_exit(void) \
{ \
	__unregister(&(__driver) , ##__VA_ARGS__); \
} \
module_exit(__driver##_exit);

/**
 * builtin_driver() - Helper macro for drivers that don't do anything
 * special in init and have no exit. This eliminates some boilerplate.
 * Each driver may only use this macro once, and calling it replaces
 * device_initcall (or in some cases, the legacy __initcall).  This is
 * meant to be a direct parallel of module_driver() above but without
 * the __exit stuff that is not used for builtin cases.
 *
 * @__driver: driver name
 * @__register: register function for this driver type
 * @...: Additional arguments to be passed to __register
 *
 * Use this macro to construct bus specific macros for registering
 * drivers, and do not use it on its own.
 */
#define builtin_driver(__driver, __register, ...) \
static int __init __driver##_init(void) \
{ \
	return __register(&(__driver) , ##__VA_ARGS__); \
} \
device_initcall(__driver##_init);

Int i2c_transfer(struct i2c_adapter *adap,struct i2c_msg *msgs, int num);

Int i2c_master_recv(const struct i2c_client *client,const char *buf,int count);

int i2c_master_send(const struct i2c_client *client, const char *buf, int count);

//i2c-core.c
struct bus_type i2c_bus_type = {
	.name		= "i2c",
	.match		= i2c_device_match,	//总线上驱动和设备的匹配函数
	.probe		= i2c_device_probe,	//总线上设备和驱动匹配时调用
	.remove		= i2c_device_remove,
	.shutdown	= i2c_device_shutdown,
	.pm		= &i2c_device_pm_ops,
};
EXPORT_SYMBOL_GPL(i2c_bus_type);
static const struct i2c_device_id dummy_id[] = {
	{ "dummy", 0 },
	{ },
};
static struct i2c_driver dummy_driver = {
	.driver.name	= "dummy",
	.probe		= dummy_probe,
	.remove		= dummy_remove,
	.id_table	= dummy_id,
};
static int __init i2c_init(void) {
	int retval;
	//注册I2C总线
	retval = bus_register(&i2c_bus_type);
	if (retval)
		return retval;
	//向I2C总线注册一个名字为dummy的驱动，这个驱动没什么实际的功能，空实现的驱动
	retval = i2c_add_driver(&dummy_driver);
	if (retval)
		goto class_err;
	return 0;
class_err:
	bus_unregister(&i2c_bus_type);
	return retval;
}
static void __exit i2c_exit(void) {
	//删除dummy驱动
	i2c_del_driver(&dummy_driver);
	//卸载I2C总线
	bus_unregister(&i2c_bus_type);
}

/* We must initialize early, because some subsystems register i2c drivers
 * in subsys_initcall() code, but are linked (and initialized) before i2c.
 */
postcore_initcall(i2c_init);
module_exit(i2c_exit);

static const struct i2c_device_id *i2c_match_id(const struct i2c_device_id *id,
  const struct i2c_client *client) {
	while (id->name[0]) {
		if (strcmp(client->name, id->name) == 0)
			return id;
		id++;
	}
	return NULL;
}

static int i2c_device_match(struct device *dev, struct device_driver *drv) {
	struct i2c_client *client = i2c_verify_client(dev);
	struct i2c_driver *driver;
	if (!client)
		return 0;
	/* Attempt an OF style match */
	if (of_driver_match_device(dev, drv))
		return 1;
	/* Then ACPI style match */
	if (acpi_driver_match_device(dev, drv))
		return 1;
	driver = to_i2c_driver(drv);
	/* match on an id table if there is one */
	if (driver->id_table)
		return i2c_match_id(driver->id_table, client) != NULL;
	return 0;
}

static int i2c_device_probe(struct device *dev) {
	//利用container_of宏获取到I2C设备结构体
	struct i2c_client	*client = i2c_verify_client(dev);
	struct i2c_driver	*driver;
	int status;

	if (!client)
		return 0;

	//利用container_of宏获取到I2C驱动结构体
	driver = to_i2c_driver(dev->driver);
	if (!driver->probe | !driver->id_table)
		return -ENODEV;

	// 把I2C设备驱动和I2C设备绑定，将来可以互相查找到对方
	client->driver = driver;
	if (!device_can_wakeup(&client->dev))
		device_init_wakeup(&client->dev,
					client->flags & I2C_CLIENT_WAKE);
	dev_dbg(dev, "probe\n");

	//调用I2C驱动的probe函数
	status = driver->probe(client, i2c_match_id(driver->id_table, client));
	if (status) {
		client->driver = NULL;
		i2c_set_clientdata(client, NULL);
	}
	return status;
}

i2c1: i2c@021a0000 {
	#address-cells = <1>;
	#size-cells = <0>;
	compatible = "fsl,imx6ul-i2c", "fsl,imx21-i2c";
	reg = <0x021a0000 0x4000>;
	interrupts = <GIC_SPI 36 IRQ_TYPE_LEVEL_HIGH>;
	clocks = <&clks IMX6UL_CLK_I2C1>;
	status = "disabled";
};

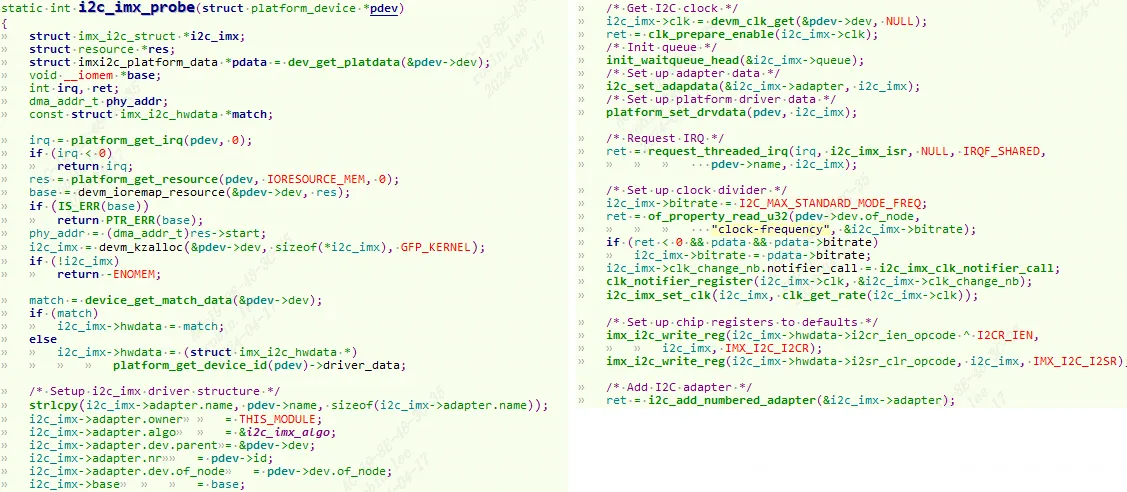

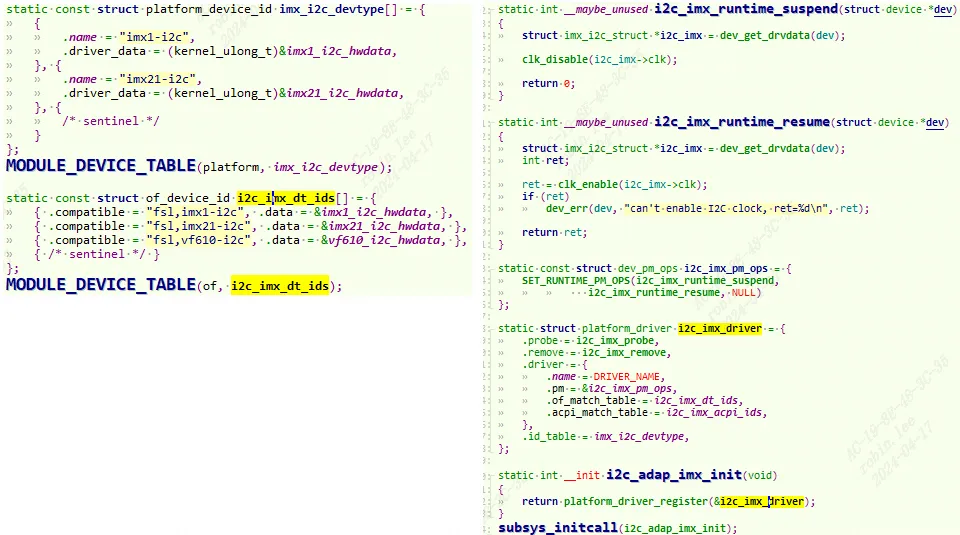

static int i2c_imx_probe(struct platform_device *pdev) {
	struct imx_i2c_struct *i2c_imx;
	struct resource *res;
	struct imxi2c_platform_data *pdata = dev_get_platdata(&pdev->dev);
	void __iomem *base;
	int irq, ret;
	dma_addr_t phy_addr;
	const struct imx_i2c_hwdata *match;

	dev_dbg(&pdev->dev, "<%s>\n", __func__);

	irq = platform_get_irq(pdev, 0);
	if (irq < 0)
		return irq;

	res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
	base = devm_ioremap_resource(&pdev->dev, res);
	if (IS_ERR(base))
		return PTR_ERR(base);

	phy_addr = (dma_addr_t)res->start;
	i2c_imx = devm_kzalloc(&pdev->dev, sizeof(*i2c_imx), GFP_KERNEL);
	if (!i2c_imx)
		return -ENOMEM;

	match = device_get_match_data(&pdev->dev);
	if (match)
		i2c_imx->hwdata = match;
	else
		i2c_imx->hwdata = (struct imx_i2c_hwdata *)
				platform_get_device_id(pdev)->driver_data;

	/* Setup i2c_imx driver structure */
	strlcpy(i2c_imx->adapter.name, pdev->name, sizeof(i2c_imx->adapter.name));
	i2c_imx->adapter.owner		= THIS_MODULE;
	i2c_imx->adapter.algo		= &i2c_imx_algo;
	i2c_imx->adapter.dev.parent	= &pdev->dev;
	i2c_imx->adapter.nr		= pdev->id;
	i2c_imx->adapter.dev.of_node	= pdev->dev.of_node;
	i2c_imx->base			= base;
	ACPI_COMPANION_SET(&i2c_imx->adapter.dev, ACPI_COMPANION(&pdev->dev));

	/* Get I2C clock */
	i2c_imx->clk = devm_clk_get(&pdev->dev, NULL);
	if (IS_ERR(i2c_imx->clk))
		return dev_err_probe(&pdev->dev, PTR_ERR(i2c_imx->clk),
				     "can't get I2C clock\n");

	ret = clk_prepare_enable(i2c_imx->clk);
	if (ret) {
		dev_err(&pdev->dev, "can't enable I2C clock, ret=%d\n", ret);
		return ret;
	}

	/* Init queue */
	init_waitqueue_head(&i2c_imx->queue);

	/* Set up adapter data */
	i2c_set_adapdata(&i2c_imx->adapter, i2c_imx);

	/* Set up platform driver data */
	platform_set_drvdata(pdev, i2c_imx);

	pm_runtime_set_autosuspend_delay(&pdev->dev, I2C_PM_TIMEOUT);
	pm_runtime_use_autosuspend(&pdev->dev);
	pm_runtime_set_active(&pdev->dev);
	pm_runtime_enable(&pdev->dev);

	ret = pm_runtime_get_sync(&pdev->dev);
	if (ret < 0)
		goto rpm_disable;

	/* Request IRQ */
	ret = request_threaded_irq(irq, i2c_imx_isr, NULL, IRQF_SHARED,
				   pdev->name, i2c_imx);
	if (ret) {
		dev_err(&pdev->dev, "can't claim irq %d\n", irq);
		goto rpm_disable;
	}

	/* Set up clock divider */
	i2c_imx->bitrate = I2C_MAX_STANDARD_MODE_FREQ;
	ret = of_property_read_u32(pdev->dev.of_node,
				   "clock-frequency", &i2c_imx->bitrate);
	if (ret < 0 && pdata && pdata->bitrate)
		i2c_imx->bitrate = pdata->bitrate;
	i2c_imx->clk_change_nb.notifier_call = i2c_imx_clk_notifier_call;
	clk_notifier_register(i2c_imx->clk, &i2c_imx->clk_change_nb);
	i2c_imx_set_clk(i2c_imx, clk_get_rate(i2c_imx->clk));

	/* Set up chip registers to defaults */

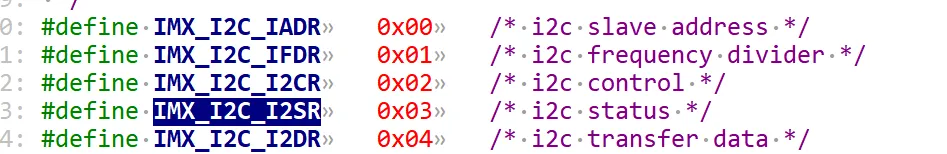

	imx_i2c_write_reg(i2c_imx->hwdata->i2cr_ien_opcode ^ I2CR_IEN,
			i2c_imx, IMX_I2C_I2CR);
	imx_i2c_write_reg(i2c_imx->hwdata->i2sr_clr_opcode, i2c_imx, IMX_I2C_I2SR);

	/* Init optional bus recovery function */
	ret = i2c_imx_init_recovery_info(i2c_imx, pdev);
	/* Give it another chance if pinctrl used is not ready yet */
	if (ret == -EPROBE_DEFER)
		goto clk_notifier_unregister;

	/* Add I2C adapter */
	ret = i2c_add_numbered_adapter(&i2c_imx->adapter);
	if (ret < 0)
		goto clk_notifier_unregister;

	pm_runtime_mark_last_busy(&pdev->dev);
	pm_runtime_put_autosuspend(&pdev->dev);

	dev_dbg(&i2c_imx->adapter.dev, "claimed irq %d\n", irq);
	dev_dbg(&i2c_imx->adapter.dev, "device resources: %pR\n", res);
	dev_dbg(&i2c_imx->adapter.dev, "adapter name: \"%s\"\n",
		i2c_imx->adapter.name);
	dev_info(&i2c_imx->adapter.dev, "IMX I2C adapter registered\n");

	/* Init DMA config if supported */
	i2c_imx_dma_request(i2c_imx, phy_addr);

	return 0;   /* Return OK */

clk_notifier_unregister:
	clk_notifier_unregister(i2c_imx->clk, &i2c_imx->clk_change_nb);
	free_irq(irq, i2c_imx);
rpm_disable:
	pm_runtime_put_noidle(&pdev->dev);
	pm_runtime_disable(&pdev->dev);
	pm_runtime_set_suspended(&pdev->dev);
	pm_runtime_dont_use_autosuspend(&pdev->dev);
	clk_disable_unprepare(i2c_imx->clk);
	return ret;
}

static struct i2c_algorithm i2c_imx_algo = {
    .master_xfer = i2c_imx_xfer,
    .functionality = i2c_imx_func,
};

static u32 i2c_imx_func(struct i2c_adapter *adapter) {
	return I2C_FUNC_I2C | I2C_FUNC_SMBUS_EMUL | I2C_FUNC_SMBUS_READ_BLOCK_DATA;
}

static int i2c_imx_xfer(struct i2c_adapter *adapter,
			struct i2c_msg *msgs, int num) {
	struct imx_i2c_struct *i2c_imx = i2c_get_adapdata(adapter);
	int result;
	result = pm_runtime_get_sync(i2c_imx->adapter.dev.parent);
	if (result < 0)
		return result;

	result = i2c_imx_xfer_common(adapter, msgs, num, false);
	pm_runtime_mark_last_busy(i2c_imx->adapter.dev.parent);
	pm_runtime_put_autosuspend(i2c_imx->adapter.dev.parent);
	return result;
}

static int i2c_imx_xfer_atomic(struct i2c_adapter *adapter,
			       struct i2c_msg *msgs, int num) {
	struct imx_i2c_struct *i2c_imx = i2c_get_adapdata(adapter);
	int result;
	result = clk_enable(i2c_imx->clk);
	if (result)
		return result;

	result = i2c_imx_xfer_common(adapter, msgs, num, true);
	clk_disable(i2c_imx->clk);
	return result;
}

static int i2c_imx_xfer_common(struct i2c_adapter *adapter, struct i2c_msg *msgs,
  int num, bool atomic) {
	unsigned int i, temp;
	int result;
	bool is_lastmsg = false;
	struct imx_i2c_struct *i2c_imx = i2c_get_adapdata(adapter);

	dev_dbg(&i2c_imx->adapter.dev, "<%s>\n", __func__);

	/* Start I2C transfer */
	result = i2c_imx_start(i2c_imx, atomic);
	if (result) {
		/*
		 * Bus recovery uses gpiod_get_value_cansleep() which is not
		 * allowed within atomic context.
		 */
		if (!atomic && i2c_imx->adapter.bus_recovery_info) {
			i2c_recover_bus(&i2c_imx->adapter);
			result = i2c_imx_start(i2c_imx, atomic);
		}
	}

	if (result)
		goto fail0;
	/* read/write data */
	for (i = 0; i < num; i++) {
		if (i == num - 1)
			is_lastmsg = true;

		if (i) {
			dev_dbg(&i2c_imx->adapter.dev,
				"<%s> repeated start\n", __func__);
			temp = imx_i2c_read_reg(i2c_imx, IMX_I2C_I2CR);
			temp |= I2CR_RSTA;
			imx_i2c_write_reg(temp, i2c_imx, IMX_I2C_I2CR);
			result = i2c_imx_bus_busy(i2c_imx, 1, atomic);
			if (result)
				goto fail0;
		}
		dev_dbg(&i2c_imx->adapter.dev,
			"<%s> transfer message: %d\n", __func__, i);
		/* write/read data */
#ifdef CONFIG_I2C_DEBUG_BUS
		temp = imx_i2c_read_reg(i2c_imx, IMX_I2C_I2CR);
		dev_dbg(&i2c_imx->adapter.dev,
			"<%s> CONTROL: IEN=%d, IIEN=%d, MSTA=%d, MTX=%d, TXAK=%d, RSTA=%d\n",
			__func__,
			(temp & I2CR_IEN ? 1 : 0), (temp & I2CR_IIEN ? 1 : 0),
			(temp & I2CR_MSTA ? 1 : 0), (temp & I2CR_MTX ? 1 : 0),
			(temp & I2CR_TXAK ? 1 : 0), (temp & I2CR_RSTA ? 1 : 0));
		temp = imx_i2c_read_reg(i2c_imx, IMX_I2C_I2SR);
		dev_dbg(&i2c_imx->adapter.dev,
			"<%s> STATUS: ICF=%d, IAAS=%d, IBB=%d, IAL=%d, SRW=%d, IIF=%d, RXAK=%d\n",
			__func__,
			(temp & I2SR_ICF ? 1 : 0), (temp & I2SR_IAAS ? 1 : 0),
			(temp & I2SR_IBB ? 1 : 0), (temp & I2SR_IAL ? 1 : 0),
			(temp & I2SR_SRW ? 1 : 0), (temp & I2SR_IIF ? 1 : 0),
			(temp & I2SR_RXAK ? 1 : 0));
#endif
		if (msgs[i].flags & I2C_M_RD) {
			result = i2c_imx_read(i2c_imx, &msgs[i], is_lastmsg, atomic);
		} else {
			if (!atomic &&
			    i2c_imx->dma && msgs[i].len >= DMA_THRESHOLD)
				result = i2c_imx_dma_write(i2c_imx, &msgs[i]);
			else
				result = i2c_imx_write(i2c_imx, &msgs[i], atomic);
		}
		if (result)
			goto fail0;
	}
fail0:
	/* Stop I2C transfer */
	i2c_imx_stop(i2c_imx, atomic);

	dev_dbg(&i2c_imx->adapter.dev, "<%s> exit with: %s: %d\n", __func__,
		(result < 0) ? "error" : "success msg",
			(result < 0) ? result : num);
	return (result < 0) ? result : num;
}

static struct i2c_board_info mx27_3ds_i2c_camera = {
	I2C_BOARD_INFO("ov2640", 0x30),
};//从设备OV2640 的名字和i2c地址

&i2c1 {
	clock-frequency = <100000>;
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_i2c1>;
	status = "okay";

	mag3110@0e {
		compatible = "fsl,mag3110";
		reg = <0x0e>;
		position = <2>;
	};
	....
};

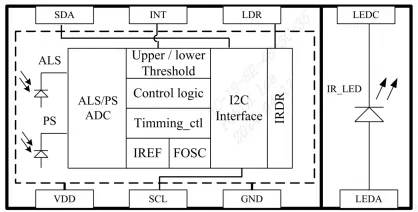

1. I2C 接口，快速模式下波特率可以到 400Kbit/S
2. 多种工作模式选择：ALS、PS+IR、ALS+PS+IR、PD 等等。
3. 内建温度补偿电路。
4. 宽工作温度范围(-30°C ~ +80°C)。
5. 超小封装，4.1mm x 2.4mm x 1.35mm
6. 环境光传感器具有 16 位分辨率。
7. 接近传感器和红外传感器具有 10 位分辨率

pinctrl_i2c1: i2c1grp {
	fsl,pins = <
		MX6UL_PAD_UART4_TX_DATA__I2C1_SCL 0x4001b8b0
		MX6UL_PAD_UART4_RX_DATA__I2C1_SDA 0x4001b8b0
	>;
};
&i2c1 {
	clock-frequency = <100000>;
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_i2c1>;
	status = "okay";

	mag3110@0e {
		compatible = "fsl,mag3110";
		reg = <0x0e>;
		position = <2>;
	};
};

&i2c1 {
	clock-frequency = <100000>;
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_i2c1>;
	status = "okay";

	ap3216c@1e {
		compatible = "alientek,ap3216c";
		reg = <0x1e>;
	};
};

#ifndef AP3216C_H
#define AP3216C_H

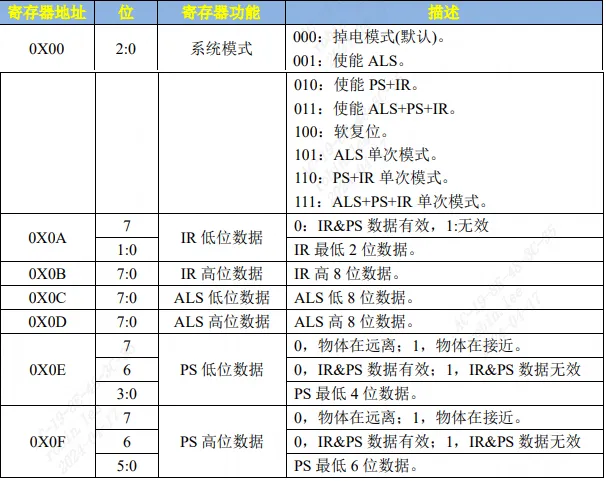

    #define AP3216C_ADDR    	0X1E	/* AP3216C器件地址  */
    #define AP3216C_SYSTEMCONG	0x00	/* 配置寄存器       */
    #define AP3216C_INTSTATUS	0X01	/* 中断状态寄存器   */
    #define AP3216C_INTCLEAR	0X02	/* 中断清除寄存器   */
    #define AP3216C_IRDATALOW	0x0A	/* IR数据低字节     */
    #define AP3216C_IRDATAHIGH	0x0B	/* IR数据高字节     */
    #define AP3216C_ALSDATALOW	0x0C	/* ALS数据低字节    */
    #define AP3216C_ALSDATAHIGH	0X0D	/* ALS数据高字节    */
    #define AP3216C_PSDATALOW	0X0E	/* PS数据低字节     */
    #define AP3216C_PSDATAHIGH	0X0F	/* PS数据高字节     */
#endif

#include <linux/types.h>
#include <linux/kernel.h>
#include <linux/delay.h>
#include <linux/ide.h>
#include <linux/init.h>
#include <linux/module.h>
#include <linux/errno.h>
#include <linux/gpio.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/of_gpio.h>
#include <linux/semaphore.h>
#include <linux/timer.h>
#include <linux/i2c.h>
#include <asm/mach/map.h>
#include <asm/uaccess.h>
#include <asm/io.h>
#include "ap3216creg.h"

#define AP3216C_CNT	1
#define AP3216C_NAME	"ap3216c"

struct ap3216c_dev {
	dev_t devid;			/* 设备号 	 */
	struct cdev cdev;		/* cdev*/
	struct class *class;	/* 类 		*/
	struct device *device;	/* 设备 	 */
	struct device_node	*nd; /* 设备节点 */
	int major;			/* 主设备号 */
	void *private_data;	/* 私有数据 */
	unsigned short ir, als, ps;		/* 三个光传感器数据 */
};

static struct ap3216c_dev ap3216cdev;

static int ap3216c_read_regs(struct ap3216c_dev *dev, u8 reg, void *val, int len) {
	int ret;
	struct i2c_msg msg[2];
	struct i2c_client *client = (struct i2c_client *)dev->private_data;

	/* msg[0]为发送要读取的首地址 */
	msg[0].addr = client->addr;			/* ap3216c地址 */
	msg[0].flags = 0;			/* 标记为发送数据 */
	msg[0].buf = &reg;			/* 读取的首地址 */
	msg[0].len = 1;				/* reg长度*/

	/* msg[1]读取数据 */
	msg[1].addr = client->addr;		/* ap3216c地址 */
	msg[1].flags = I2C_M_RD;		/* 标记为读取数据*/
	msg[1].buf = val;				/* 读取数据缓冲区 */
	msg[1].len = len;			/* 要读取的数据长度*/

	ret = i2c_transfer(client->adapter, msg, 2);
	if(ret == 2) {
		ret = 0;
	} else {
		printk("i2c rd failed=%d reg=%06x len=%d\n",ret, reg, len);
		ret = -EREMOTEIO;
	}
	return ret;
}

static s32 ap3216c_write_regs(struct ap3216c_dev *dev, u8 reg, u8 *buf, u8 len) {
	u8 b[256];
	struct i2c_msg msg;
	struct i2c_client *client = (struct i2c_client *)dev->private_data;

	b[0] = reg;					/* 寄存器首地址 */
	memcpy(&b[1],buf,len);		/* 将要写入的数据拷贝到数组b里面 */

	msg.addr = client->addr;	/* ap3216c地址 */
	msg.flags = 0;				/* 标记为写数据 */

	msg.buf = b;				/* 要写入的数据缓冲区 */
	msg.len = len + 1;			/* 要写入的数据长度 */

	return i2c_transfer(client->adapter, &msg, 1);
}

static unsigned char ap3216c_read_reg(struct ap3216c_dev *dev, u8 reg) {
	u8 data = 0;

	ap3216c_read_regs(dev, reg, &data, 1);
	return data;

#if 0
	struct i2c_client *client = (struct i2c_client *)dev->private_data;
	return i2c_smbus_read_byte_data(client, reg);
#endif
}


static void ap3216c_write_reg(struct ap3216c_dev *dev, u8 reg, u8 data) {
	u8 buf = 0;
	buf = data;
	ap3216c_write_regs(dev, reg, &buf, 1);
}

void ap3216c_readdata(struct ap3216c_dev *dev) {
	unsigned char i =0;
    unsigned char buf[6];

	/* 循环读取所有传感器数据 */
    for(i = 0; i < 6; i++)
        buf[i] = ap3216c_read_reg(dev, AP3216C_IRDATALOW + i);

    if(buf[0] & 0X80) 	/* IR_OF位为1,则数据无效 */
		dev->ir = 0;
	else 				/* 读取IR传感器的数据*/
		dev->ir = ((unsigned short)buf[1] << 2) | (buf[0] & 0X03);

	dev->als = ((unsigned short)buf[3] << 8) | buf[2];/* 读取ALS传感器的数据*/

    if(buf[4] & 0x40)	/* IR_OF位为1,则数据无效 */
		dev->ps = 0;
	else 				/* 读取PS传感器的数据    */
		dev->ps = ((unsigned short)(buf[5] & 0X3F) << 4) | (buf[4] & 0X0F);
}

static int ap3216c_open(struct inode *inode, struct file *filp) {
	filp->private_data = &ap3216cdev;
	/* 初始化AP3216C */
	ap3216c_write_reg(&ap3216cdev, AP3216C_SYSTEMCONG, 0x04);/* 复位AP3216C */
	mdelay(50);	/* AP3216C复位最少10ms 	*/
	ap3216c_write_reg(&ap3216cdev, AP3216C_SYSTEMCONG, 0X03);/* 开启ALS、PS+IR */
	return 0;
}

static ssize_t ap3216c_read(struct file *filp, char __user *buf, size_t cnt, loff_t *off) {
	short data[3];
	long err = 0;

	struct ap3216c_dev *dev = (struct ap3216c_dev *)filp->private_data;
	ap3216c_readdata(dev);

	data[0] = dev->ir;
	data[1] = dev->als;
	data[2] = dev->ps;
	err = copy_to_user(buf, data, sizeof(data));
	return 0;
}

static int ap3216c_release(struct inode *inode, struct file *filp) {
	return 0;
}

static const struct file_operations ap3216c_ops = {
	.owner = THIS_MODULE,
	.open = ap3216c_open,
	.read = ap3216c_read,
	.release = ap3216c_release,
};

static int ap3216c_probe(struct i2c_client *client, const struct i2c_device_id *id) {
	if (ap3216cdev.major) {
		ap3216cdev.devid = MKDEV(ap3216cdev.major, 0);
		register_chrdev_region(ap3216cdev.devid, AP3216C_CNT, AP3216C_NAME);
	} else {
		alloc_chrdev_region(&ap3216cdev.devid, 0, AP3216C_CNT, AP3216C_NAME);
		ap3216cdev.major = MAJOR(ap3216cdev.devid);
	}

	cdev_init(&ap3216cdev.cdev, &ap3216c_ops);
	cdev_add(&ap3216cdev.cdev, ap3216cdev.devid, AP3216C_CNT);

	ap3216cdev.class = class_create(THIS_MODULE, AP3216C_NAME);
	if (IS_ERR(ap3216cdev.class)) {
		return PTR_ERR(ap3216cdev.class);
	}

	ap3216cdev.device = device_create(ap3216cdev.class, NULL, ap3216cdev.devid,
                                      NULL, AP3216C_NAME);
	if (IS_ERR(ap3216cdev.device)) {
		return PTR_ERR(ap3216cdev.device);
	}

	ap3216cdev.private_data = client;

	return 0;
}

static int ap3216c_remove(struct i2c_client *client) {
	cdev_del(&ap3216cdev.cdev);
	unregister_chrdev_region(ap3216cdev.devid, AP3216C_CNT);
	device_destroy(ap3216cdev.class, ap3216cdev.devid);
	class_destroy(ap3216cdev.class);
	return 0;
}

static const struct i2c_device_id ap3216c_id[] = {
	{"alientek,ap3216c", 0},
	{}
};

static const struct of_device_id ap3216c_of_match[] = {
	{ .compatible = "alientek,ap3216c" },
	{ /* Sentinel */ }
};

static struct i2c_driver ap3216c_driver = {
	.probe = ap3216c_probe,
	.remove = ap3216c_remove,
	.driver = {
			.owner = THIS_MODULE,
		   	.name = "ap3216c",
		   	.of_match_table = ap3216c_of_match,
		   },
	.id_table = ap3216c_id,
};

#if 0
static int __init ap3216c_init(void) {
	int ret = 0;

	ret = i2c_add_driver(&ap3216c_driver);
	return ret;
}
static void __exit ap3216c_exit(void) {
	i2c_del_driver(&ap3216c_driver);
}
module_init(ap3216c_init);
module_exit(ap3216c_exit);
#else
module_i2c_driver(ap3216c_driver);
#endif

ap3216c_read
   	ap3216c_readdata//读取数据6字节
   		ap3216c_read_reg//读取一个字节
   			ap3216c_read_regs//构造i2c_msg[2]调用i2c_transfer获取1个字节传感器数据

#include "stdio.h"
#include "unistd.h"
#include "sys/types.h"
#include "sys/stat.h"
#include "sys/ioctl.h"
#include "fcntl.h"
#include "stdlib.h"
#include "string.h"
#include <poll.h>
#include <sys/select.h>
#include <sys/time.h>
#include <signal.h>
#include <fcntl.h>
int main(int argc, char *argv[]) {
	int fd;
	char *filename;
	unsigned short databuf[3];
	unsigned short ir, als, ps;
	int ret = 0;

	if (argc != 2) {
		printf("Error Usage!\r\n");
		return -1;
	}

	filename = argv[1];
	fd = open(filename, O_RDWR);
	if(fd < 0) {
		printf("can't open file %s\r\n", filename);
		return -1;
	}

	while (1) {
		ret = read(fd, databuf, sizeof(databuf));
		if(ret == 0) { 			/* 数据读取成功 */
			ir =  databuf[0]; 	/* ir传感器数据 */
			als = databuf[1]; 	/* als传感器数据 */
			ps =  databuf[2]; 	/* ps传感器数据 */
			printf("ir = %d, als = %d, ps = %d\r\n", ir, als, ps);
		}
		usleep(200000); /*100ms */
	}
	close(fd);	/* 关闭文件 */
	return 0;
}

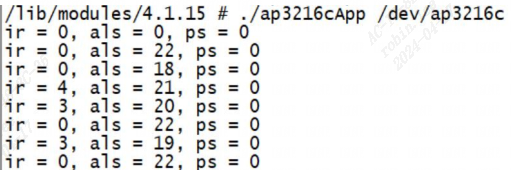

执行程序如下：
./a.out /dev/ap3216c
