struct block_device_operations {
	int (*open) (struct block_device *, fmode_t);
	void (*release) (struct gendisk *, fmode_t);
	int (*rw_page)(struct block_device *, sector_t, struct page *, int rw);
	int (*ioctl) (struct block_device *, fmode_t, unsigned, unsigned long);
	int (*compat_ioctl) (struct block_device *, fmode_t, unsigned, unsigned long); // 一个64位系统内的32位进程调用的是compat_ioctl（）
	int (*direct_access) (struct block_device *, sector_t,
	void **, unsigned long *);
	unsigned int (*check_events) (struct gendisk *disk, unsigned int clearing); // 监测可移动设备介质变动
	/* ->media_changed() is DEPRECATED, use ->check_events() instead */
	int (*media_changed) (struct gendisk *);
	void (*unlock_native_capacity) (struct gendisk *);
	int (*revalidate_disk) (struct gendisk *); // 可移动设备介质变动时进行初始化
	int (*getgeo)(struct block_device *, struct hd_geometry *); // 获取hd_geometry结构体包含的磁头、扇区、柱面等信息
	/* this callback is with swap_lock and sometimes page table lock held */
	void (*swap_slot_free_notify) (struct block_device *, unsigned long);
	struct module *owner;
};

struct gendisk {
	/* major, first_minor and minors are input parameters only,
	* don't use directly. Use disk_devt() and disk_max_parts().
	*/
	int major; /* major number of driver */
	int first_minor;
	int minors; /* maximum number of minors, =1for
	* disks that can't be partitioned. */

	char disk_name[DISK_NAME_LEN]; /* name of major driver */
	char *(*devnode)(struct gendisk *gd, umode_t *mode);

	unsigned int events; /* supported events */
	unsigned int async_events; /* async events, subset of all */

	/* Array of pointers to partitions indexed by partno.
	* Protected with matching bdev lock but stat and other
	* non-critical accesses use RCU. Always access through
	* helpers.
	*/
	struct disk_part_tbl __rcu *part_tbl; // 分区表disk->part_tbl->part[0] = &disk->part0;
	struct hd_struct part0; // 第一个分区

	const struct block_device_operations *fops;
	struct request_queue *queue;
	void *private_data;

	int flags;
	struct device *driverfs_dev; // FIXME: remove
	struct kobject *slave_dir;

	struct timer_rand_state *random;
	atomic_t sync_io; /* RAID */
	struct disk_events *ev;
	#ifdef CONFIG_BLK_DEV_INTEGRITY
	struct blk_integrity *integrity;
	#endif
	int node_id;
};

struct gendisk *alloc_disk(int minors); // 动态分配gendisk结构体，需要内核来初始化，不能自己分配
void add_disk(struct gendisk *disk); // 注册磁盘设备，必须在驱动程序初始化工作完成并能响应磁盘的请求之后调用
void del_gendisk(struct gendisk *gp);
// 增加和减少引用计数
struct kobject *get_disk(struct gendisk *disk);
void put_disk(struct gendisk *disk);

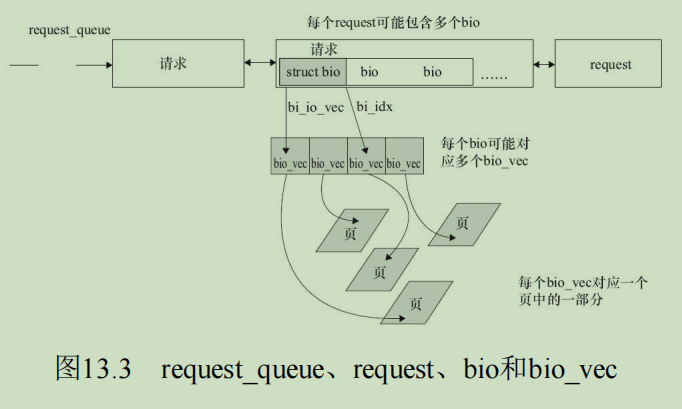

struct bio_vec {
	struct page *bv_page;
	unsigned int bv_len;
	unsigned int bv_offset;
};

/*
 * main unit of I/O for the block layer and lower layers (ie drivers and
 * stacking drivers)
 */
struct bio {
	struct bio *bi_next; /* request queue link */
	struct block_device *bi_bdev;
	unsigned long bi_flags; /* status, command, etc */
	unsigned long bi_rw; /* bottom bits READ/WRITE,
	* top bits priority
	*/

	struct bvec_iter bi_iter;

	/* Number of segments in this BIO after
	* physical address coalescing is performed.
	*/
	unsigned int bi_phys_segments;

	...

	struct bio_vec *bi_io_vec; /* the actual vec list */

	struct bio_set *bi_pool;

	/*
	* We can inline a number of vecs at the end of the bio, to avoid
	* double allocations for a small number of bio_vecs. This member
	* MUST obviously be kept at the very end of the bio.
	*/
	struct bio_vec bi_inline_vecs[0];
};
// 分配并初始化request_queue,绑定request_queue的处理函数，内存分配可能会失败，要检查返回值，用于使用request_queue的情况
request_queue_t *blk_init_queue(request_fn_proc *rfn, spinlock_t *lock);
void blk_cleanup_queue(request_queue_t * q); // 回收blk_init_queue分配的request_queue
// 用于ramdisk这种完全随机访问的块设备，绕过IO调度器，无需合并bio
request_queue_t *blk_alloc_queue(int gfp_mask);
void blk_queue_make_request(request_queue_t * q, make_request_fn * mfn); // 绑定blk_alloc_queue分配的request_queue的处理函数
struct request * blk_peek_request(struct request_queue *q); // 获取request_queue内的下一个request，不会清除队列
void blk_start_request(struct request *req); // 从队列中移除下一个request
struct request *blk_fetch_request(struct request_queue *q); // 同时完成获取并清除request
// 遍历request中的所有bio
#define __rq_for_each_bio(_bio, rq) \
	if ((rq->bio)) \
		for (_bio = (rq)->bio; _bio; _bio = _bio->bi_next)
// 遍历bio中的所有bio_vec
#define __bio_for_each_segment(bvl, bio, iter, start) \
	for (iter = (start); \
		(iter).bi_size && \
			((bvl = bio_iter_iovec((bio), (iter))), 1); \
		bio_advance_iter((bio), &(iter), (bvl).bv_len))
#define bio_for_each_segment(bvl, bio, iter) \
	__bio_for_each_segment(bvl, bio, iter, (bio)->bi_iter)
// 遍历rquest中的所有bio_vec
#define rq_for_each_segment(bvl, _rq, _iter) \
	__rq_for_each_bio(_iter.bio, _rq) \
		bio_for_each_segment(bvl, _iter.bio, _iter.iter)
void blk_end_request_all(struct request *rq, int error); // 报告request是否完成
void bio_endio(struct bio *bio, int error); // 用于blk_queue_make_request绕开io调度器的情况，报告bio是否完成
#define bio_io_error(bio) bio_endio((bio), -EIO) // 用于IO操作错误

# 查看可用调度器
cat /sys/block/sdX/queue/scheduler
# 临时修改调度器
echo bfq > /sys/block/sdX/queue/scheduler
# 永久更改调度器（使用 udev 规则）
ACTION=="add|change", KERNEL=="sda", SUBSYSTEM=="block", ATTR{queue/scheduler}="bfq"
# 永久更改调度器（使用内核参数)
elevator=<scheduler_name>

static int xxx_init(void)
{
	/* 块设备驱动注册 */
	if (register_blkdev(XXX_MAJOR,"xxx")) {
		err = -EIO;
		goto out;
	}

	/* 请求队列初始化 */
	xxx_queue = blk_init_queue(xxx_request, xxx_lock);
	if (!xxx_queue)
	goto out_queue;
	blk_queue_max_hw_sectors(xxx_queue, 255); //通知通用块层和I/O调度器该请求队列支持的每个请求中能够包含的最大扇区数
	blk_queue_logical_block_size(xxx_queue, 512); // 告知该请求队列的逻辑块大小

	/* gendisk初始化 */
	xxx_disks->major = XXX_MAJOR;
	xxx_disks->first_minor = 0;
	xxx_disks->fops = &xxx_op;
	xxx_disks->queue = xxx_queue;
	sprintf(xxx_disks->disk_name,"xxx%d", i);
	set_capacity(xxx_disks, xxx_size *2);
	add_disk(xxx_disks); /* 添加gendisk */

	return 0;
out_queue:
	unregister_blkdev(XXX_MAJOR,"xxx");
out:
	put_disk(xxx_disks);
	blk_cleanup_queue(xxx_queue);
	return -ENOMEM;
}

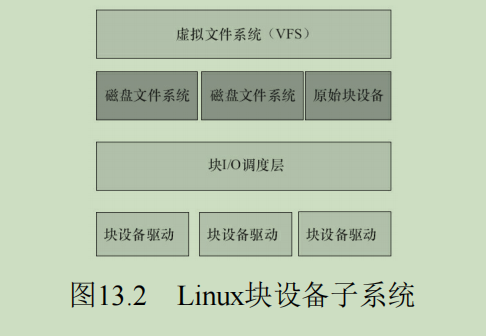

// 由于块设备上面还有io调度层和文件系统层，不直接面向VFS，所以参数与inode及file结构无关
static int xxx_open(struct block_device *bdev, fmode_t mode)
{
	struct xxx_dev *dev = bdev->bd_disk->private_data;
	...
	return 0;
}

static void xxx_release(struct gendisk *disk, fmode_t mode)
{
	struct xxx_dev *dev = disk->private_data;
	...
}
// 高层的块设备层代码处理了绝大多数I/O控制，因此，在具体的块设备驱动中通常只需要实现与设备相关的特定ioctl命令

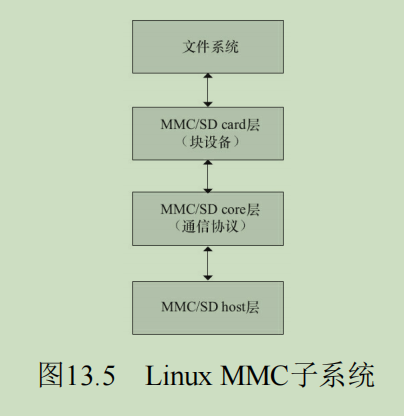

static int mmc_blk_ioctl(struct block_device *bdev, fmode_t mode, unsigned int cmd, unsigned long arg)
{
	int ret = -EINVAL;
	if (cmd == MMC_IOC_CMD)
	ret = mmc_blk_ioctl_cmd(bdev, (struct mmc_ioc_cmd __user *)arg);
	return ret;
}

struct block_device_operations xxx_op{
	.open = xxx_open,
	.release = xxx_release,
	.ioctl = mmc_blk_ioctl,
}
module_init(xxx_init);

static int xxx_init(void){
	/* 请求队列初始化 */
	xxx_queue = blk_init_queue(xxx_request, xxx_lock);
	xxx_disks->queue = xxx_queue;
	...
}

static void xxx_request(struct request_queue *q)
{
	struct memstick_dev *card = q->queuedata;
	struct msb_data *msb = memstick_get_drvdata(card);
	struct request *req = NULL;

	dbg_verbose("Submit request");
	// 设备已移除，报错
	if (msb->card_dead) {
		dbg("Refusing requests on removed card");

		WARN_ON(!msb->io_queue_stopped);

		while ((req = blk_fetch_request(q)) != NULL)
			__blk_end_request_all(req, -ENODEV);
		return;
	}

	if (msb->req)
		return;
	// 正常处理请求，遍历request中的bio并处理，也可使用工作队列异步处理
	if (!msb->io_queue_stopped){
		for_each_bio(bio){
			bio_for_each_segment(bvec, bio, iter){
				__blk_segment_map_sg(q, &bvec, sglist, &bvprv, sg,&nsegs, &cluster);
			}
		}
	}
}

static int xxx_init(void){
	// request_queue初始化，实际不包含任何请求，因为块层没有必要将bio调整为request
	xxx_queue = blk_alloc_queue(gfp_mask);
	blk_queue_make_request(xxx_queue, xxx_make_request);
	xxx_disks->queue = xxx_queue;
	...
}

static void xxx_make_request(struct request_queue *queue, struct bio *bio)
{
	struct memstick_dev *card = q->queuedata;
	struct msb_data *msb = memstick_get_drvdata(card);
	struct request *req = NULL;

	dbg_verbose("Submit request");
	// 设备已移除，报错
	if (msb->card_dead) {
		dbg("Refusing requests on removed card");

		WARN_ON(!msb->io_queue_stopped);
		bio_endio(bio, -ENODEV);
		return;
	}

	if (msb->req)
		return;
	// 遍历bio并处理每个bio_vec，也可使用工作队列异步处理
	if (!msb->io_queue_stopped){
		bio_for_each_segment(bvec, bio, iter) {
			zram_bvec_rw(zram, &bv, index, offset, bio);
	}
}
